Create your dream getaway with these detailed architectural plans for a tiny, modern A-frame cabin. Perfect for any plot of land, this versatile design combines style, functionality, and cost-efficiency. The A-frame structure is simpler and more affordable to build than traditional cabins and offers exceptional energy efficiency. The included concrete slab foundation design ensures an easy and material-efficient construction process.

Key Features:

Total Area: 560 sq. ft. (52.02 sq. m.)

DETAILS:
-FLOORS: 2
-BEDROOMS: 2
-BATHROOMS: 1

DIMENSIONS:
-WIDTH: 20'ft
-DEPTH: 28' ft
-HEIGHT: 25 ft

Estimated Construction Cost: $23,000 – $34,000*(*Costs may vary based on region, labor rates, and material quality. Pool and land fees are not included.)

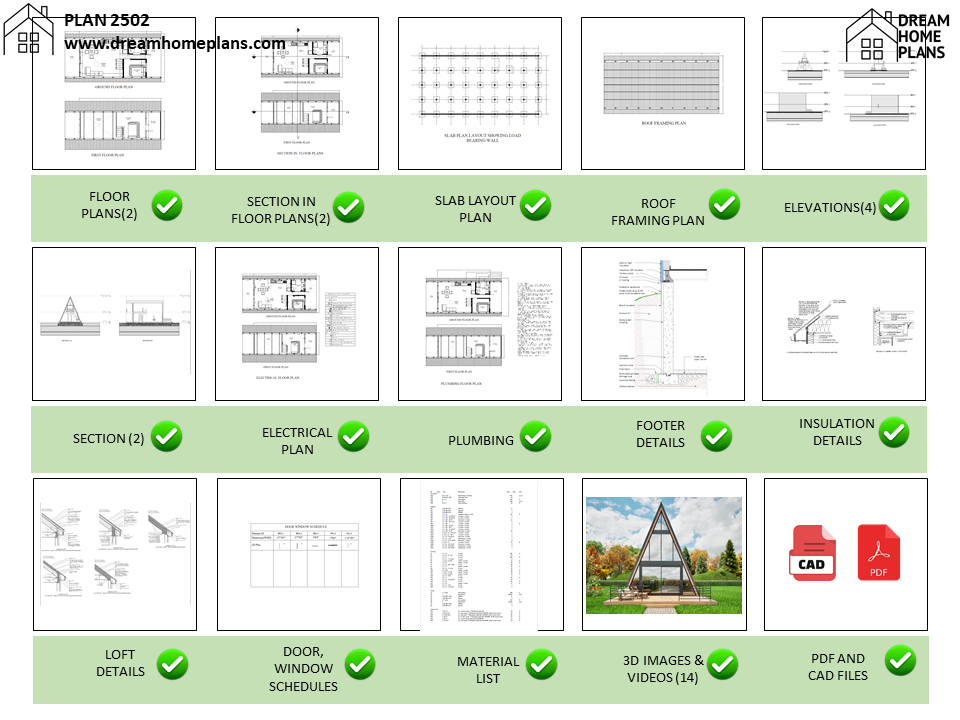

DRAWINGS INCLUDED
1.GROUND FLOOR PLAN
2.FIRST PLAN
3. SLAB PLAN LAYOUT SHOWING LOAD
BEARING WALL
4. SECTIONS IN FLOOR PLAN
5. SECTION A-A'
6.SECTION B-B'
7.EAST ELEVATION
8.WEST ELEVATION
9.NORTH ELEVATION
10. SOUTH ELEVATION
11.RAFTER DETAILS
12. WALL DETAILS
13. WALL AND WINDOW DETAILS
14.EXTERIOR WALL FOUNDATION DETAILS
15. FRAMING DETAILS
16.ELECTRICAL PLAN
17. PLUMBING
18. MATERIAL LIST

Important Notes:
-No physical printed plans included; digital files only
-Consult with a licensed builder or architect for local code compliance
-Plans are for personal use only; redistribution is prohibited
-Due to copyright laws, returns are not available

With these professional-grade plans, you’ll have everything you need to create a stunning, modern A-frame cabin that’s both functional and aesthetically pleasing. Start building your dream today!

What's Included in Your Plan

When you purchase this plan, you’ll receive a comprehensive set of digital drawings and details to guide you through every step of building your dream home. Each plan includes the following:

Drawings Included:

  • Presentation Drawing: A visual overview of the design, showcasing the aesthetic and layout.
  • Working Drawing: Detailed drawings that include all necessary construction notes and specifications.
  • West & East Elevation: Side views of the house, showing the heights and finishes from the west and east perspectives.
  • South & North Elevation: Front and rear views of the house, outlining the heights and finishes from the south and north perspectives.
  • Section A-A': A cross-sectional view that details the interior structure along the A-A’ line.
  • Section B-B': A cross-sectional view that details the interior structure along the B-B’ line.
  • Section C-C': A cross-sectional view that details the interior structure along the C-C’ line.
  • Structural Layout: The foundational framework, including floor layouts and roof structures.
  • Wall Framing Details: Specifics on how each wall is constructed, including dimensions and materials.
  • Post Details: Information on the structural posts that support the building.
  • Header Details: Detailed drawings of the header construction above windows and doors.
  • Steel Truss Details: Layout and specifications for any steel trusses used in the structure.
  • Joining Details: Information on how various elements of the building are connected.
  • Electrical Drawing: A layout of the electrical plan, including the placement of outlets, switches, and fixtures.
  • Plumbing Drawing: Detailed plumbing layout, showing the placement of pipes, fixtures, and connections.
  • Material List: A comprehensive list of materials required for the construction of your home.
  • Slab Details: Information regarding the foundation slab, including dimensions and materials used.

Source Files Included:

  • CAD Files: Editable CAD files to modify and adapt the design to your specific needs.
  • SketchUp Files: 3D SketchUp models for a detailed and interactive view of the design.

Important Notes:

  • Digital Files Only: No physical printed plans are included with your purchase. All files are provided in a digital format for your convenience.
  • Consult a Professional: It is highly recommended to consult with a licensed builder or architect to ensure compliance with local building codes and regulations.
  • Personal Use Only: These plans are intended for personal use only. Redistribution, resale, or sharing of the files is strictly prohibited.
  • No Returns: Due to copyright laws and the nature of digital products, returns or exchanges are not available.

This plan is perfect for anyone looking to build their dream home with a touch of elegance and modern house aesthetic. Ready to bring your vision to life? Download your plan today and take the first step towards your serene homestead retreat.
