Discover the sleek and inviting design of our Modern Black Cabin House Plan, crafted for those who value comfort, style, and smart space usage. Whether you’re building a primary residence, a vacation getaway, or a short-term rental property, this beautifully designed plan offers the perfect blend of rustic charm and contemporary living.
With a spacious 1,369 sqft living area and a massive 1,192 sqft uncovered deck, this home is ideal for outdoor enthusiasts, families, or anyone seeking a modern yet cozy lifestyle. The layout features an open living space, three comfortable bedrooms, two full bathrooms, a loft, and a well-equipped kitchen—making it the ultimate plan for functional, relaxed living.
Specifications:
● Living Area: 1,369 SqFt
● Uncovered Deck: 1,192 SqFt
● Total Footprint: 2,560 SqFt
Interior Room Sizes:
● Kitchen: 210 SqFt
● Living Room: 322 SqFt
● Bedroom #1: 196 SqFt
● Bedroom #2: 126 SqFt
● Bedroom #3: 208 SqFt
● Lofts: 648 SqFt
● Bathroom #1: 84 SqFt
● Bathroom #2: 42 SqFt
● Laundry: 64 SqFt
● Closet: 37 SqFt
● Storage: 16 SqFt
Built with durable wood framing and modern construction techniques, this design ensures comfort in all seasons. High ceilings, large windows, and open floor plans create a light-filled interior that’s both spacious and efficient.
What’s Included in the Plan (Digital PDF):
- A0.1 – Project Overview
- A0.2 – General Notes

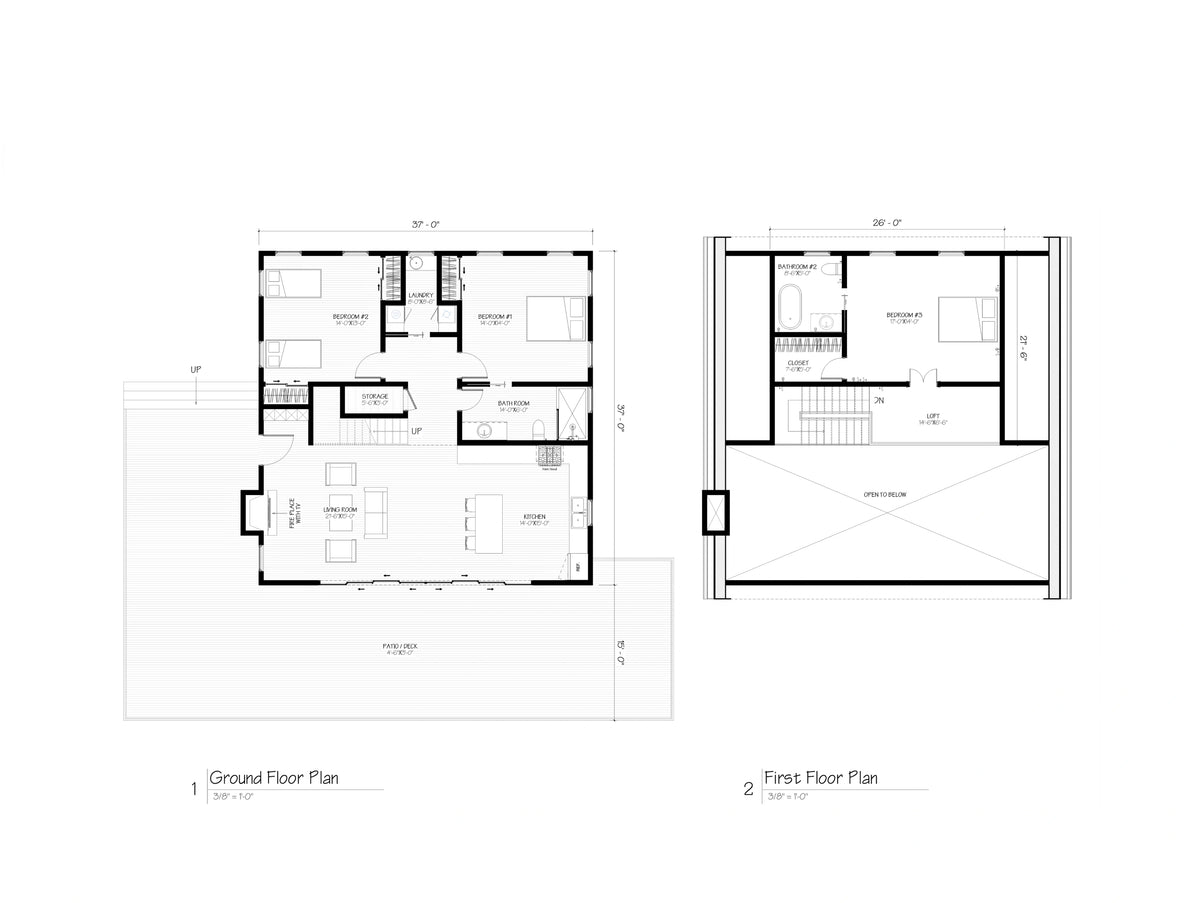

- A1.1 – Architectural Floor Plan
- A1.2 – Foundation Plan & Slab
- A1.3 – A1.5 – Wall Layout Plans
- A1.6 – Ceiling & Roof Plan & Framing
- A2.1 – Elevation Views
- A3.1 – Section Drawing
- A4.1 – Door & Window Schedule
- A4.2 – A4.4 – Join Details
- A4.5 – Stair Details
- A5.1 – Kitchen Details
- A5.2 – Bathroom Details
- E1.1 – Electrical Plan
- P1.1 – Plumbing Plan
- M1.1 – Material Information
These comprehensive architectural drawings are perfect for homeowners, contractors, and DIY builders looking to bring their dream home to life with precision and ease.
Additional Project Information:
1. Design Features: 37' x 37' compact footprint, open-concept layout, vaulted ceilings, loft space, large deck, modern exterior with rustic finishes
2. Construction Materials: Wood framing, modern insulation, energy-efficient windows, and durable roofing materials
3. Intended Use: Suitable as a family home, vacation house, Airbnb/rental unit, or countryside cabin
Important Notes:
● No physical printed plans included; digital files only
● Consult with a licensed builder or architect for local code compliance
● Plans are for personal use only; redistribution is prohibited
● Due to copyright laws, returns are not available
This modern cabin plan offers the perfect balance between style, practicality, and cost-effective building. Start your journey toward a cozy, modern lifestyle with these easy-to-follow architectural plans. Download today and make your dream home a reality!
What's Included in Your Plan
When you purchase this plan, you’ll receive a comprehensive set of digital drawings and details to guide you through every step of building your dream home. Each plan includes the following:
Drawings Included:
- Presentation Drawing: A visual overview of the design, showcasing the aesthetic and layout.
- Working Drawing: Detailed drawings that include all necessary construction notes and specifications.
- West & East Elevation: Side views of the house, showing the heights and finishes from the west and east perspectives.
- South & North Elevation: Front and rear views of the house, outlining the heights and finishes from the south and north perspectives.
- Section A-A': A cross-sectional view that details the interior structure along the A-A’ line.
- Section B-B': A cross-sectional view that details the interior structure along the B-B’ line.
- Section C-C': A cross-sectional view that details the interior structure along the C-C’ line.
- Structural Layout: The foundational framework, including floor layouts and roof structures.
- Wall Framing Details: Specifics on how each wall is constructed, including dimensions and materials.
- Post Details: Information on the structural posts that support the building.
- Header Details: Detailed drawings of the header construction above windows and doors.
- Steel Truss Details: Layout and specifications for any steel trusses used in the structure.
- Joining Details: Information on how various elements of the building are connected.
- Electrical Drawing: A layout of the electrical plan, including the placement of outlets, switches, and fixtures.
- Plumbing Drawing: Detailed plumbing layout, showing the placement of pipes, fixtures, and connections.
- Material List: A comprehensive list of materials required for the construction of your home.
- Slab Details: Information regarding the foundation slab, including dimensions and materials used.
Source Files Included:
- CAD Files: Editable CAD files to modify and adapt the design to your specific needs.
- SketchUp Files: 3D SketchUp models for a detailed and interactive view of the design.
Important Notes:
- Digital Files Only: No physical printed plans are included with your purchase. All files are provided in a digital format for your convenience.
- Consult a Professional: It is highly recommended to consult with a licensed builder or architect to ensure compliance with local building codes and regulations.
- Personal Use Only: These plans are intended for personal use only. Redistribution, resale, or sharing of the files is strictly prohibited.
- No Returns: Due to copyright laws and the nature of digital products, returns or exchanges are not available.
This plan is perfect for anyone looking to build their dream home with a touch of elegance and modern house aesthetic. Ready to bring your vision to life? Download your plan today and take the first step towards your serene homestead retreat.
