About This Plan
Experience timeless elegance and comfort with this Craftsman Ranch Cottage House Plan. Spanning an impressive 2,576 sq ft, this thoughtfully designed one-story home features 3 spacious bedrooms, 2 full bathrooms, and an open-concept layout perfect for relaxed family living or entertaining guests. The exterior’s charming cottage appeal is paired with a modern interior flow, including a vaulted family room and a large, functional kitchen.
Whether you're planning your dream ranch home, a countryside retreat, or a modern farmhouse with classic appeal, this plan offers a flexible and stylish solution. The covered front and back porches enhance outdoor living while the walk-in closets, utility space, and pantry ensure day-to-day convenience and storage.
This home design includes detailed architectural blueprints for builders, homeowners, or contractors seeking a professional, ready-to-build plan. It balances cozy charm with practical elegance — ideal for anyone who loves timeless architecture blended with modern ease.
This Craftsman ranch house plan is perfect for anyone seeking a spacious yet efficient lifestyle with the aesthetics of a warm and inviting family home. Start building your dream home today with this detailed and builder-ready plan!
Details:
Floor: 01
Bedrooms: 03
Bathrooms: 02
Width: 56'6" ft
Depth: 46'10" ft
Height: 22'4" ft
Living Area: 2,576 sq ft
Drawings Included:

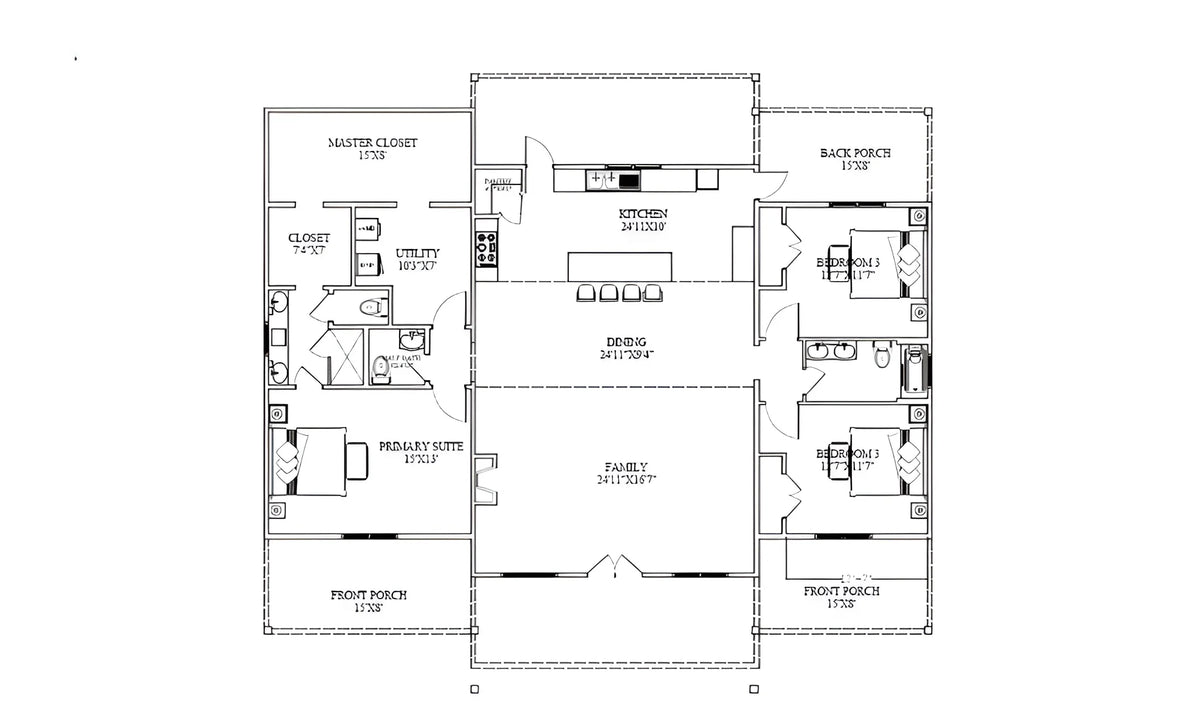

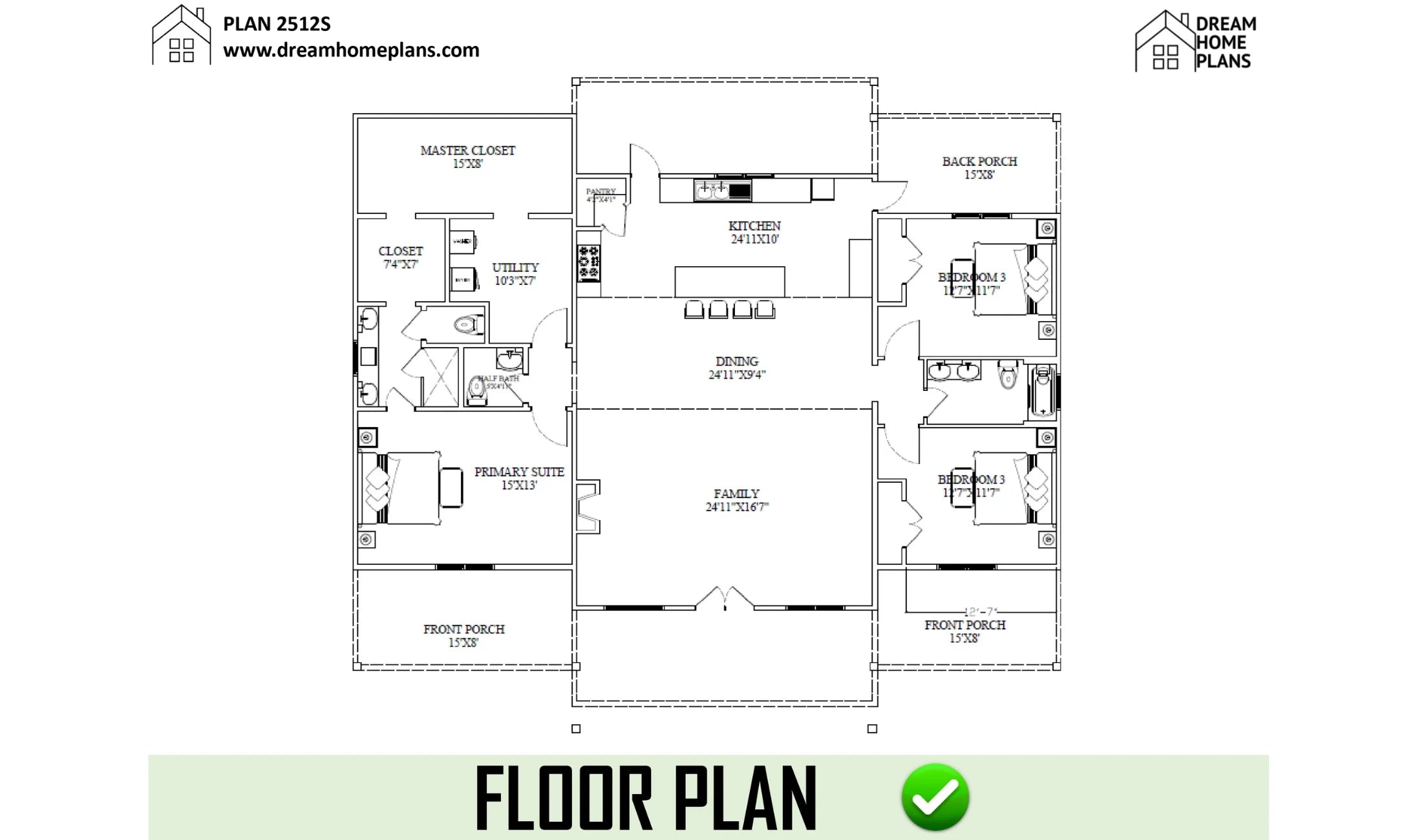

- Ground Floor Plan
- Slab Plan Layout Showing Load-Bearing Walls
- Section Views (A-A', B-B')
- East, West, North & South Elevations
- Rafter & Roof Details
- Wall & Window Details
- Foundation & Framing Details
- Ceiling Layout
- Electrical & Plumbing Plans
- Door & Window Schedule
- Complete Material List
Important Notes:
- Digital download only — no printed materials will be shipped
- Always check with your local building authority to ensure code compliance
- A licensed architect or engineer may be required to approve the plans in some regions
- For personal use only — redistribution is prohibited
- Due to copyright protection, returns and exchanges are not accepted
This house plan offers a beautiful and functional layout for families, retirees, or anyone looking for a modern take on the classic American Craftsman home. Download your blueprint today and take the first step toward your dream home!
What's Included
What's Included in Your Plan
When you purchase this plan, you’ll receive a comprehensive set of digital drawings and details to guide you through every step of building your dream home. Each plan includes the following:
Important Notes
Digital Files Only: No physical printed plans are included with your purchase. All files are provided in a digital format for your convenience.
It is highly recommended to consult with a licensed builder or architect to ensure compliance with local building codes and regulations.
Personal Use Only: These plans are intended for personal use only. Redistribution, resale, or sharing of the files is strictly prohibited.
No Returns: Due to copyright laws and the nature of digital products, returns or exchanges are not available.
Source Files Included
CAD Files: Editable CAD files to modify and adapt the design to your specific needs.
SketchUp Files: 3D SketchUp models for a detailed and interactive view of the design.
This plan is perfect for anyone looking to build their dream home with a touch of elegance and modern house aesthetic. Ready to bring your vision to life? Download your plan today and take the first step towards your serene homestead retreat.

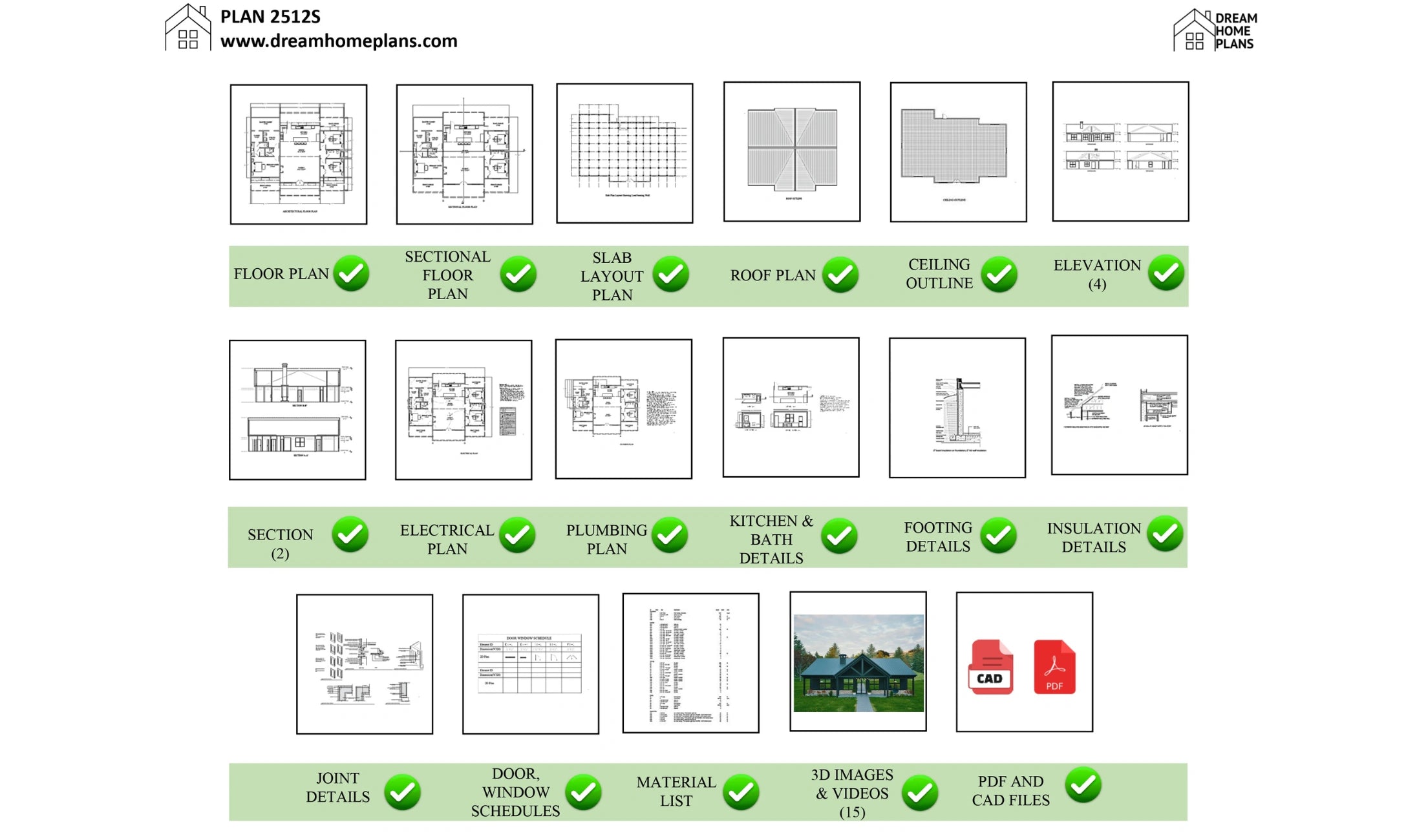

Drawings Included
Presentation Drawing: A visual overview of the design, showcasing the aesthetic and layout.
Working Drawing: Detailed drawings that include all necessary construction notes and specifications.
West & East Elevation: Side views of the house, showing the heights and finishes from the west and east perspectives.
South & North Elevation: Front and rear views of the house, outlining the heights and finishes from the south and north perspectives.
Section A-A': A cross-sectional view that details the interior structure along the A-A’ line.
Section B-B': A cross-sectional view that details the interior structure along the B-B’ line.
Section C-C': A cross-sectional view that details the interior structure along the C-C’ line.
Structural Layout: The foundational framework, including floor layouts and roof structures.
Wall Framing Details: Specifics on how each wall is constructed, including dimensions and materials.
Post Details: Information on the structural posts that support the building.
Header Details: Detailed drawings of the header construction above windows and doors.
Steel Truss Details: Layout and specifications for any steel trusses used in the structure.
Joining Details: Information on how various elements of the building are connected.
Electrical Drawing: A layout of the electrical plan, including the placement of outlets, switches, and fixtures.
Plumbing Drawing: Detailed plumbing layout, showing the placement of pipes, fixtures, and connections.
Material List: A comprehensive list of materials required for the construction of your home.
Slab Details: Information regarding the foundation slab, including dimensions and materials used.
