About This Plan
Experience the perfect balance of modern style and everyday functionality with this Modern Cottage Gable House Plan, thoughtfully designed using metric measurements. Spanning approximately 92.4 square meters, this cozy yet well-planned home features 2 bedrooms, 2 bathrooms, and an efficient open-concept kitchen and living area, offering comfort and practicality in every corner.
The gable roof design adds timeless architectural charm while enhancing interior volume and natural light. The open-layout living, dining, and kitchen space creates a bright, welcoming atmosphereāideal for relaxed daily living or hosting guests. With its clean lines and modern cottage aesthetic, this plan blends simplicity with contemporary elegance.
Whether youāre planning a small family home, vacation cottage, guest house, or Airbnb rental, this design adapts beautifully to different lifestyles. Its compact footprint makes it cost-effective to build while still delivering a comfortable and functional living experience.
This house plan includes detailed architectural blueprints in metric units, designed for clarity and ease of construction. The layout balances efficiency and comfort, making it suitable as a small house, modern cottage, or downsized home. If youāre looking for a stylish, practical, and build-ready design, this gable cottage plan is an excellent choice.
Details (Metric):
- Floors: 01
- Bedrooms: 02
- Bathrooms: 02
- Width: 11.20 meters
- Depth: 8.25 meters
- Approx. Total Area: 92.40 sqm
- Roof Type: Gable Roof
- Measurement System: Metric (Meters)

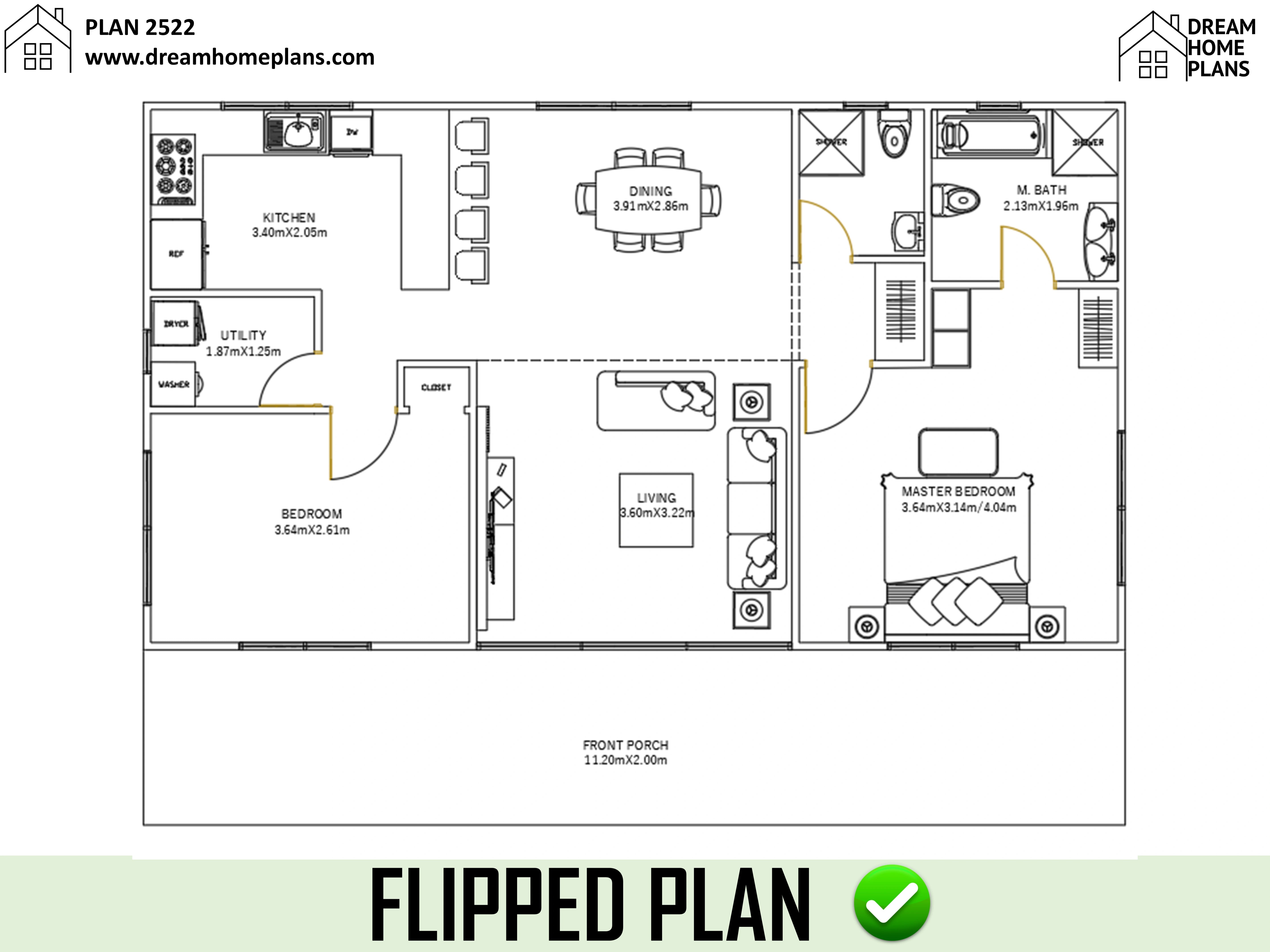

Drawings Included:

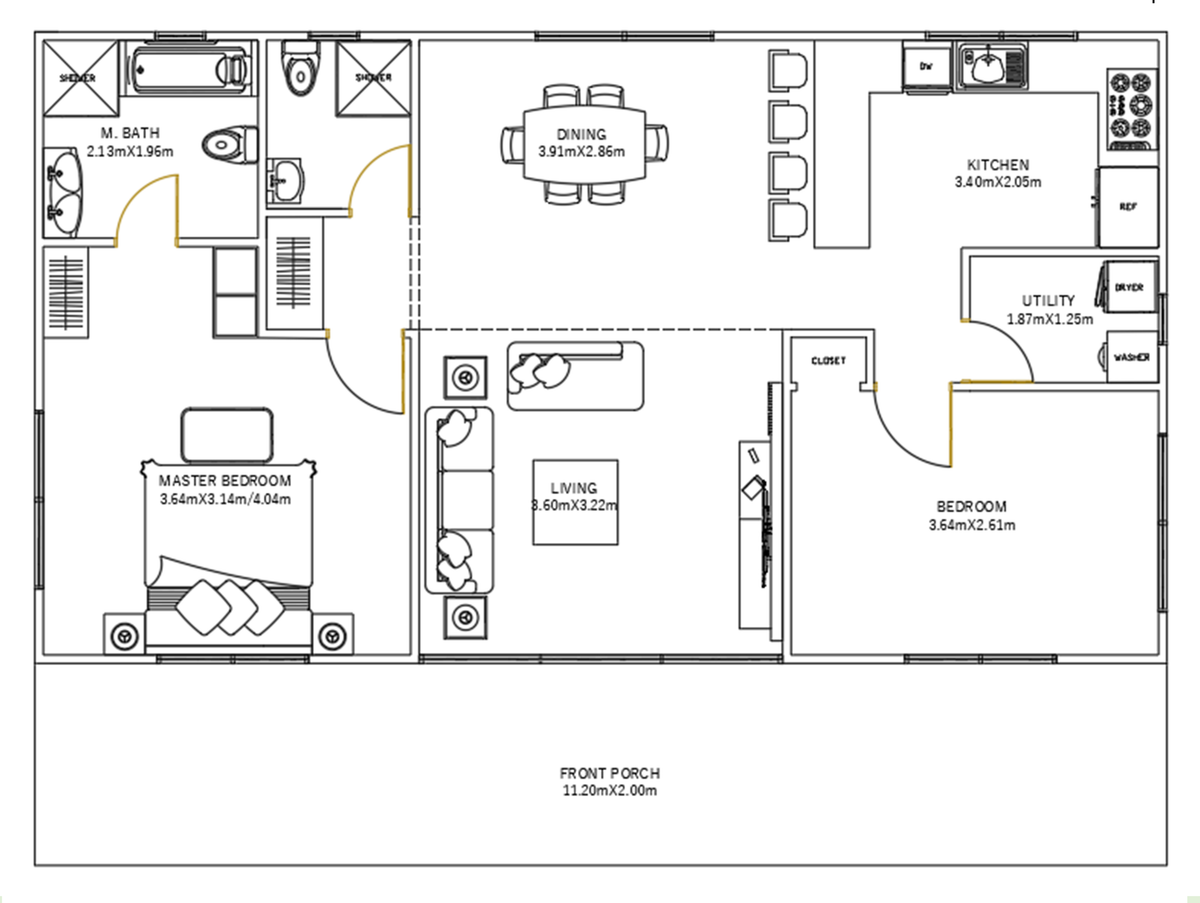

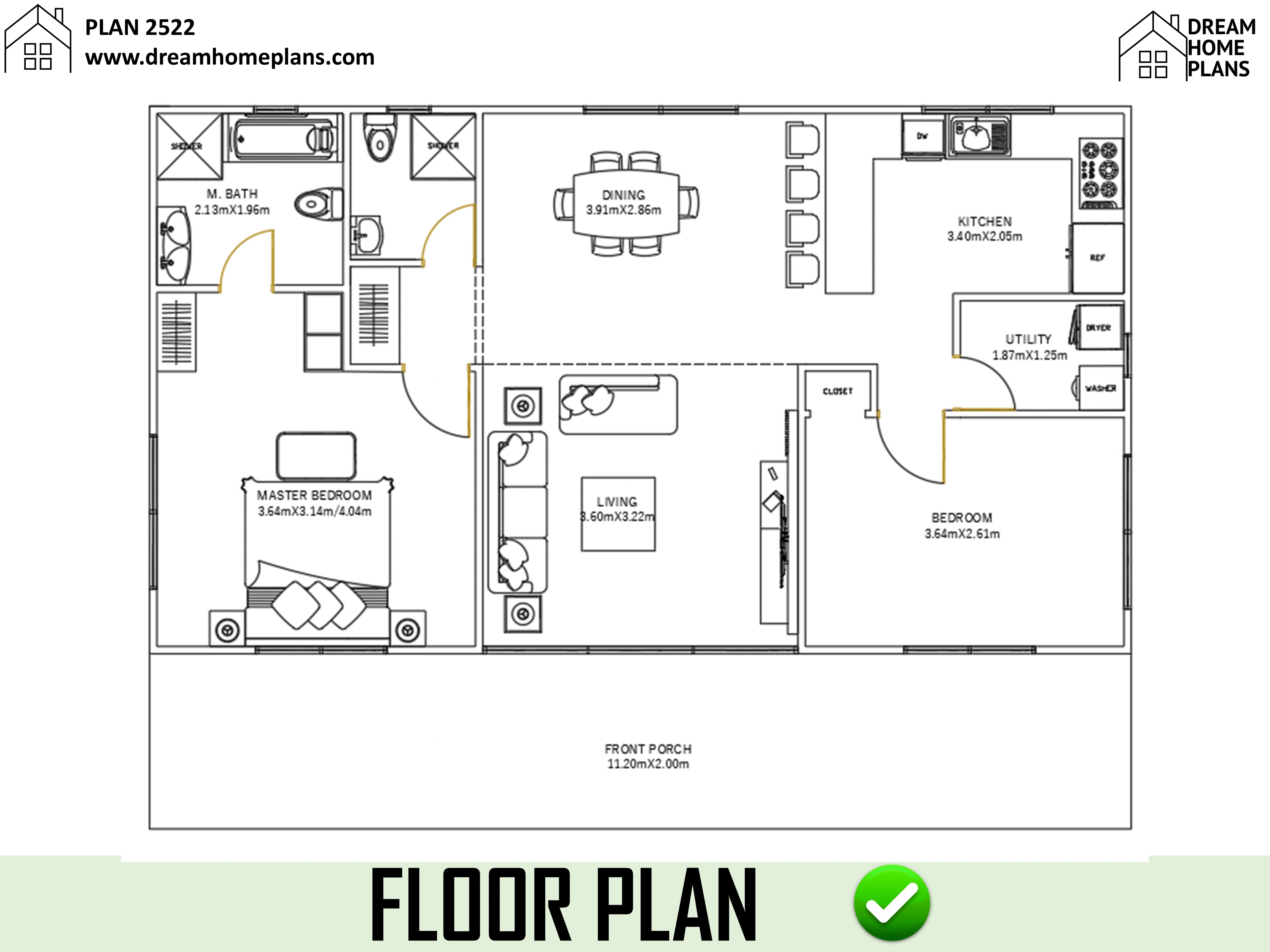

- Ground Floor Plan
- Slab / Foundation Layout
- Sections in Floor Plan
- Section AāAā
- Section BāBā
- East Elevation
- West Elevation
- North Elevation
- South Elevation
- Roof Outline & Rafter Details
- Wall Details
- Wall & Window Details
- Exterior Wall Foundation Details
- Framing Details
- Electrical Plan
- Plumbing & Drainage Plans
Important Notes
- Digital files only (no printed plans included)
- Buyer must verify plans with local building authorities or a licensed professional
- Plans are for personal use only; redistribution or resale is prohibited
- Due to the digital nature of this product, returns or refunds are not available
This Modern Gable Cottage House Plan is perfect for anyone seeking a compact, efficient, and elegant home design built with metric measurements. Download your plans today and take the first step toward creating your modern cottage retreat.
What's Included
What's Included in Your Plan
When you purchase this plan, youāll receive a comprehensive set of digital drawings and details to guide you through every step of building your dream home. Each plan includes the following:
Important Notes
Digital Files Only:Ā No physical printed plans are included with your purchase. All files are provided in a digital format for your convenience.
It is highly recommended to consult with a licensed builder or architect to ensure compliance with local building codes and regulations.
Personal Use Only:Ā These plans are intended for personal use only. Redistribution, resale, or sharing of the files is strictly prohibited.
No Returns:Ā Due to copyright laws and the nature of digital products, returns or exchanges are not available.
Source Files Included
CAD Files: Editable CAD files to modify and adapt the design to your specific needs.
SketchUp Files: 3D SketchUp models for a detailed and interactive view of the design.
This plan is perfect for anyone looking to build their dream home with a touch of elegance and modern house aesthetic. Ready to bring your vision to life? Download your plan today and take the first step towards your serene homestead retreat.

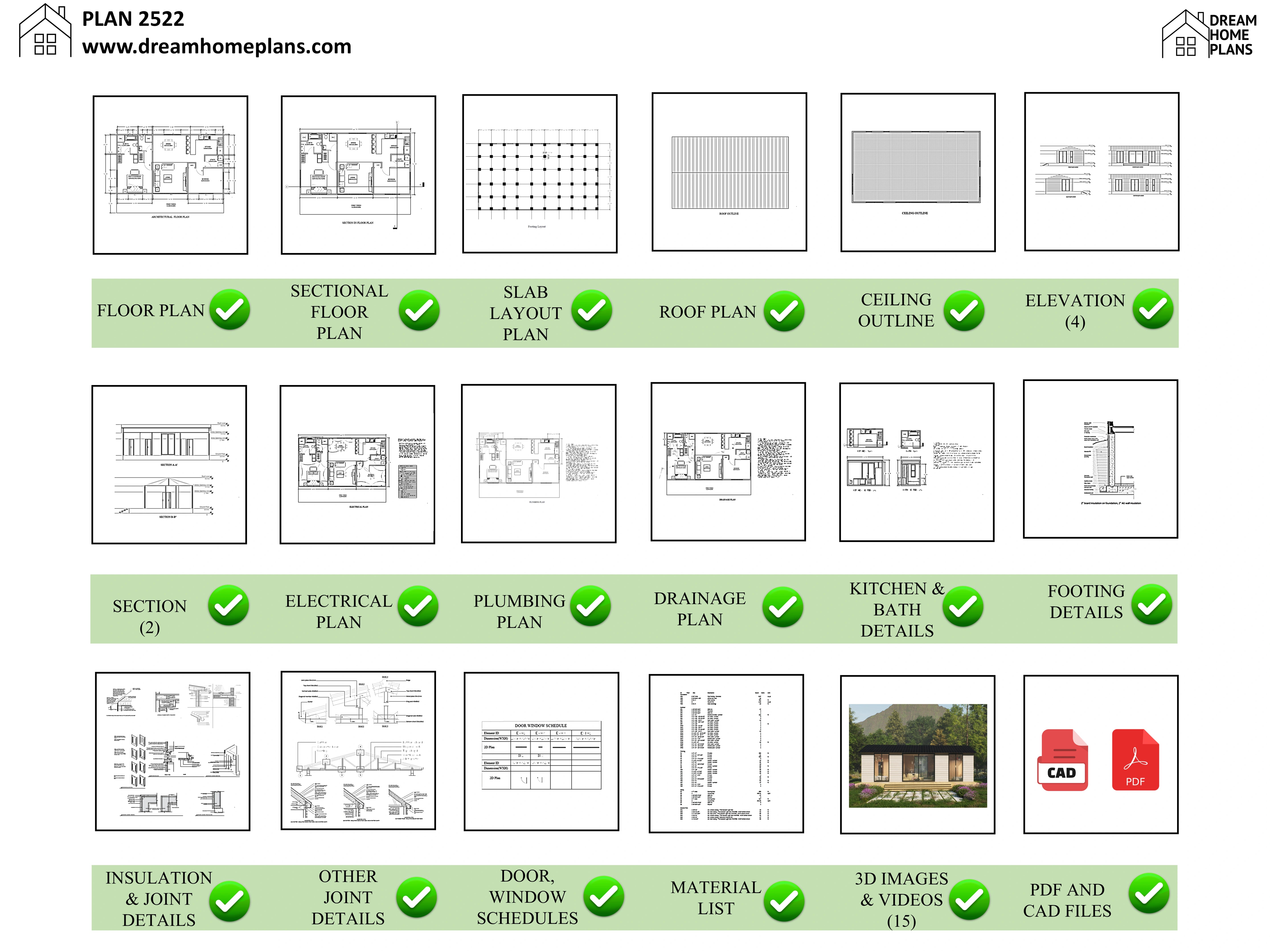

Drawings Included
Presentation Drawing: A visual overview of the design, showcasing the aesthetic and layout.
Working Drawing: Detailed drawings that include all necessary construction notes and specifications.
West & East Elevation: Side views of the house, showing the heights and finishes from the west and east perspectives.
South & North Elevation: Front and rear views of the house, outlining the heights and finishes from the south and north perspectives.
Section A-A': A cross-sectional view that details the interior structure along the A-Aā line.
Section B-B': A cross-sectional view that details the interior structure along the B-Bā line.
Section C-C': A cross-sectional view that details the interior structure along the C-Cā line.
Structural Layout: The foundational framework, including floor layouts and roof structures.
Wall Framing Details: Specifics on how each wall is constructed, including dimensions and materials.
Post Details: Information on the structural posts that support the building.
Header Details: Detailed drawings of the header construction above windows and doors.
Steel Truss Details: Layout and specifications for any steel trusses used in the structure.
Joining Details: Information on how various elements of the building are connected.
Electrical Drawing: A layout of the electrical plan, including the placement of outlets, switches, and fixtures.
Plumbing Drawing: Detailed plumbing layout, showing the placement of pipes, fixtures, and connections.
Material List: A comprehensive list of materials required for the construction of your home.
Slab Details: Information regarding the foundation slab, including dimensions and materials used.
