About This Plan
Experience the perfect combination of charm, comfort, and modern living with this beautifully designed Modern Cottage House Plan. Spanning 691 square feet, this thoughtfully crafted home features 1 spacious bedroom, 1 full bathroom, an open-concept living room, dining area, and a functional L-shaped kitchen with peninsula seating, making it an ideal choice for comfortable everyday living.
Designed with both style and practicality in mind, this compact cottage includes covered front and rear porches, creating inviting outdoor spaces to relax, entertain guests, or enjoy peaceful surroundings. Its timeless cottage architecture paired with modern design elements makes it perfect as a primary residence, vacation retreat, Airbnb rental, guest house, or backyard cottage.
Whether you're searching for tiny house plans, cottage house plans, small cabin blueprints, guest house plans, or DIY construction drawings, this complete architectural plan set provides everything you need to begin your building project. The efficient floor plan maximizes every square foot while maintaining a spacious and welcoming atmosphere.
Details:
- Floor: 01
- Bedrooms: 01
- Bathrooms: 01
- Interior Area: Approx. 691 Sq. Ft.
- Width: 33'-9" ft
- Depth: 26'-5" ft
- Building Height: Approx. 20'-8"
Drawing Included:

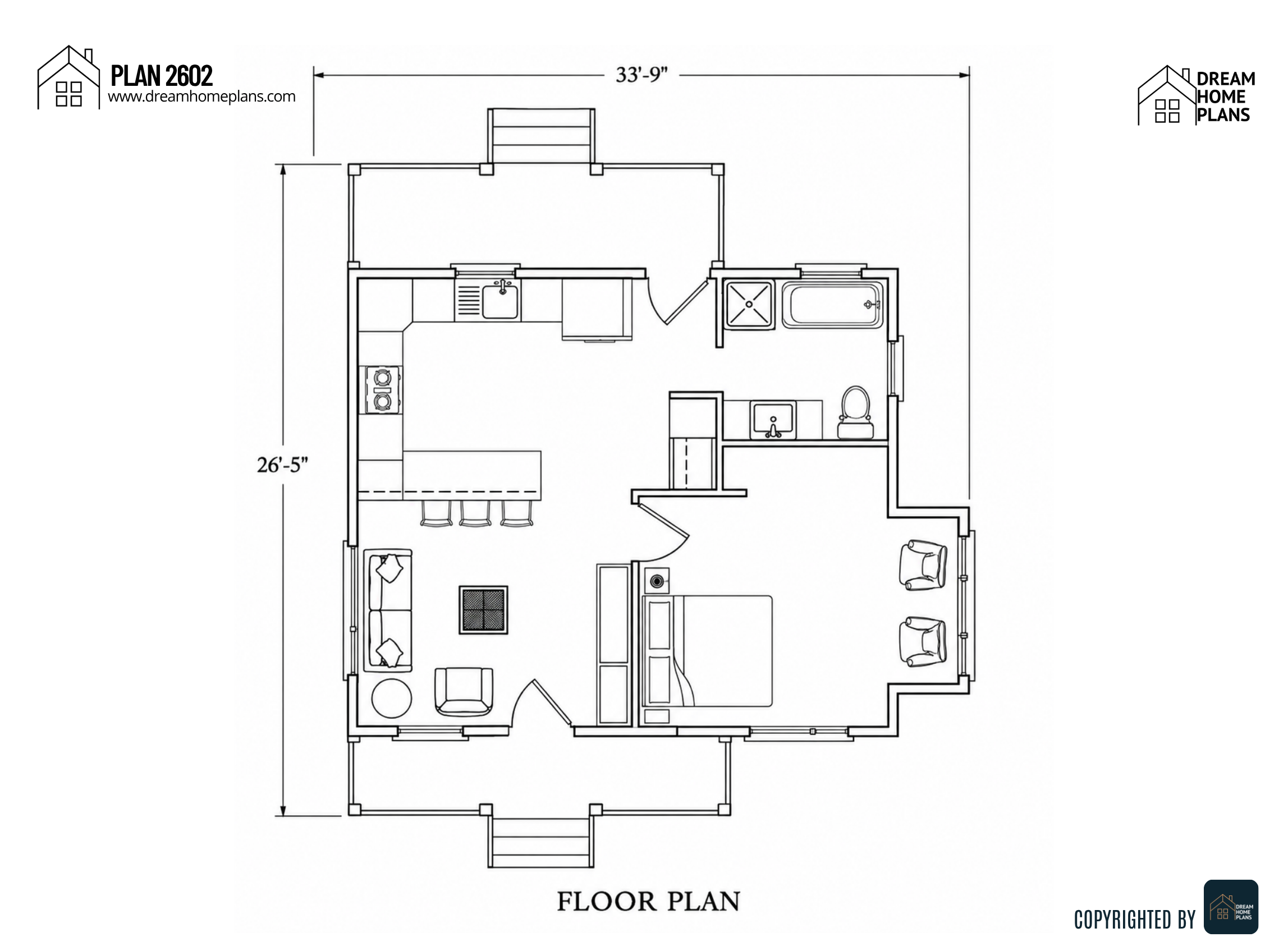

- Floor Plan

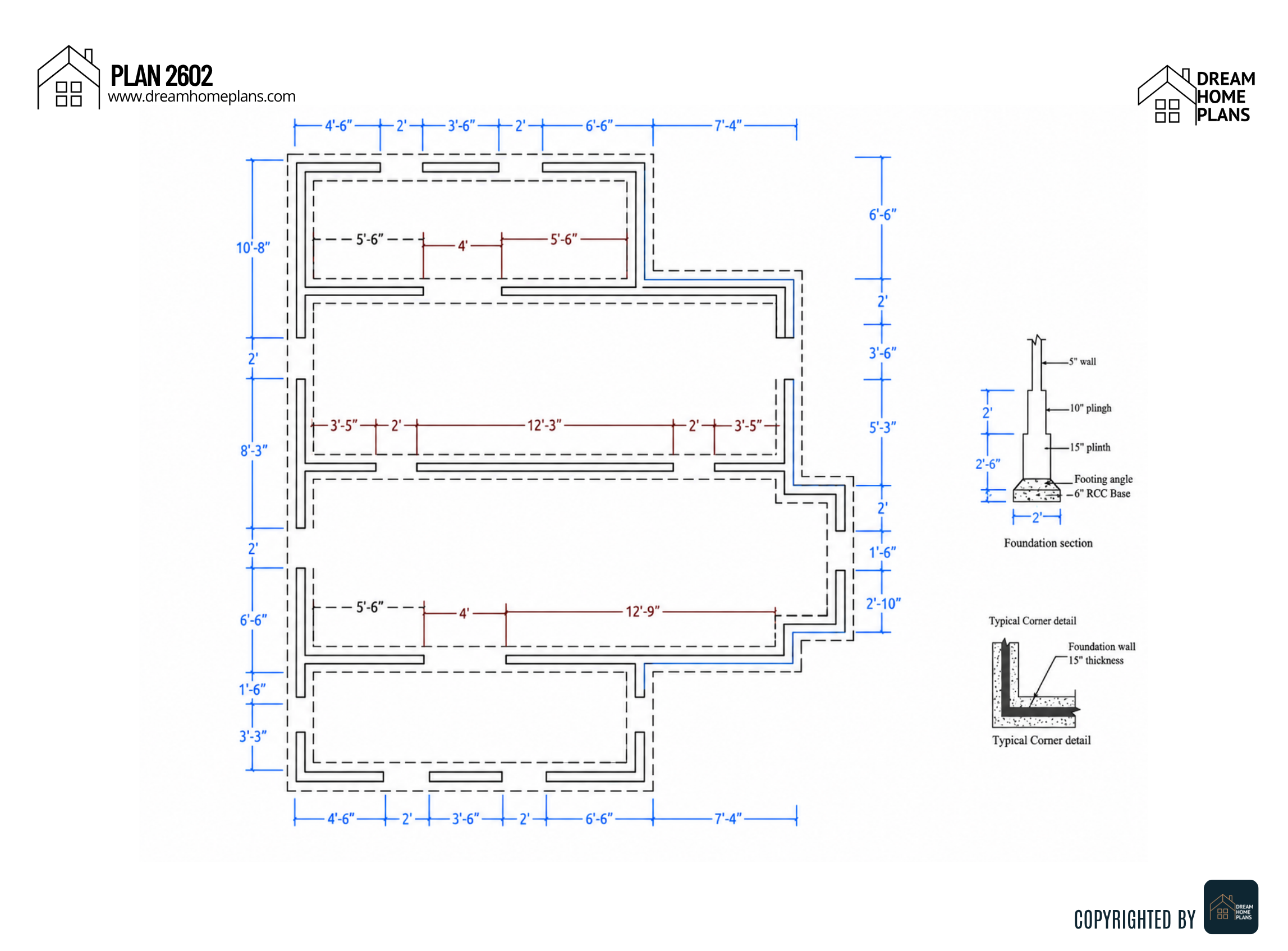

- Foundation Plan

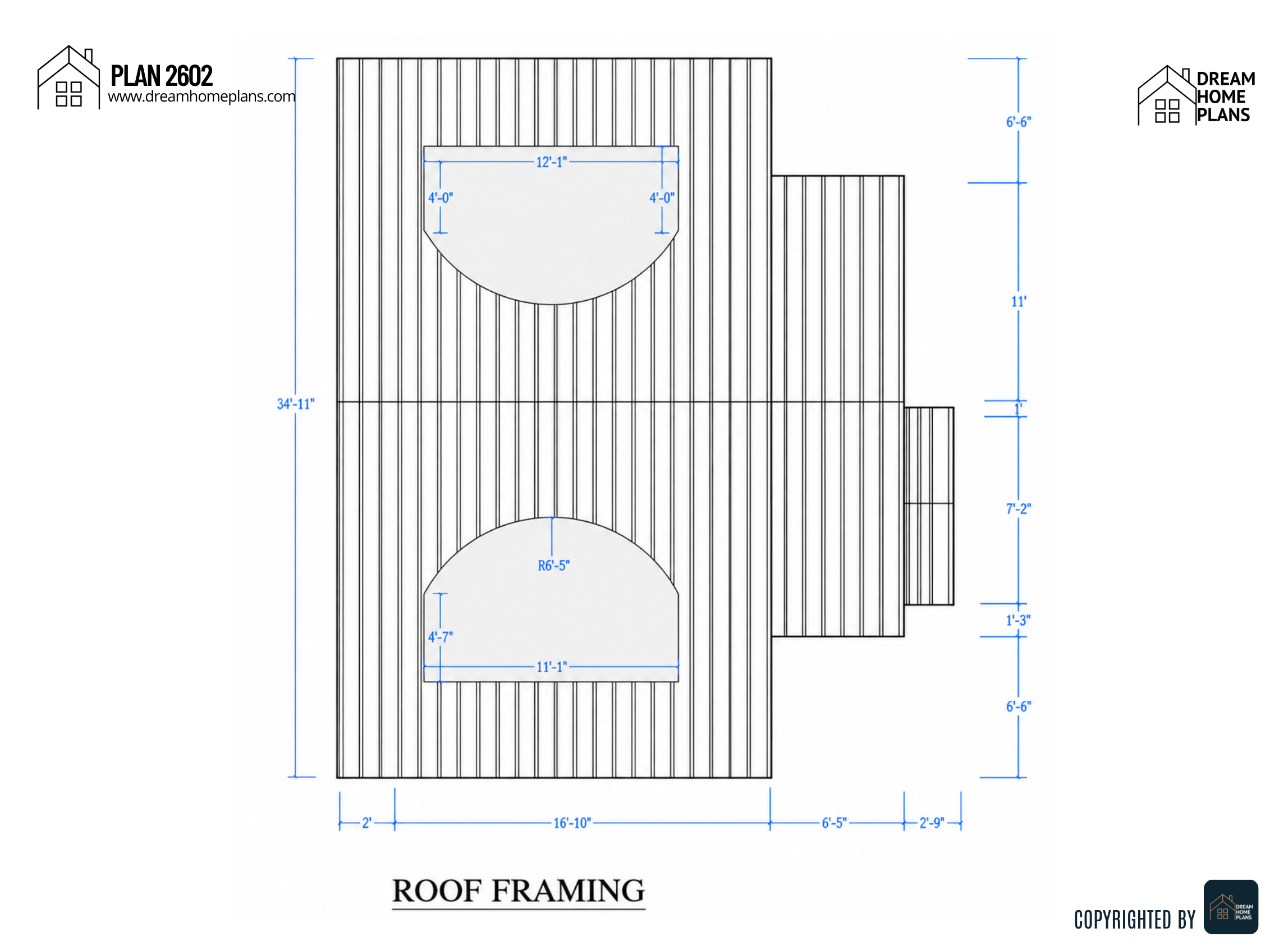

- Roof Framing Plan
- Section A-A'
- Section B-B'

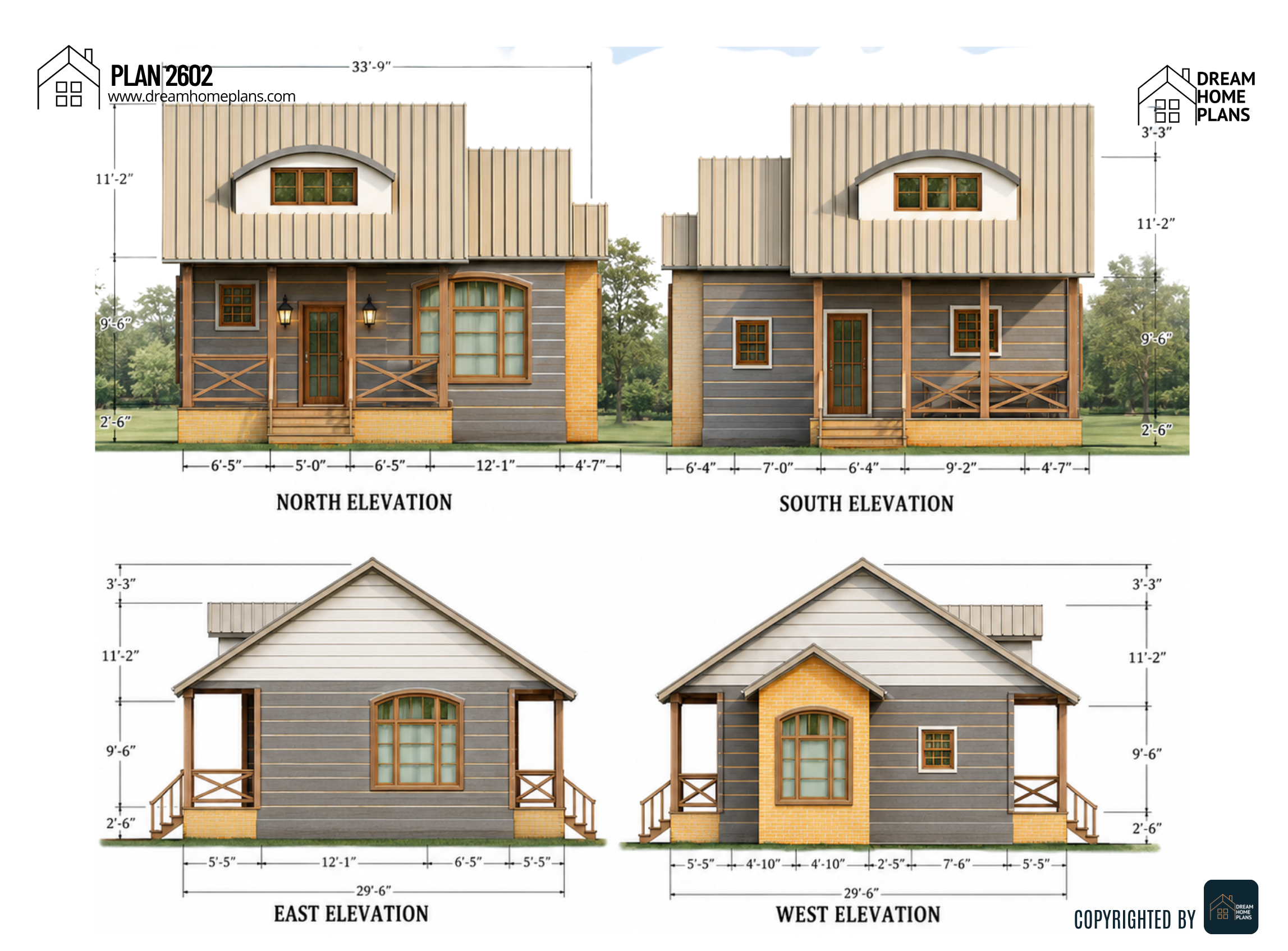

- East Elevation
- West Elevation
- North Elevation
- South Elevation
- Roof Details
- Foundation Details

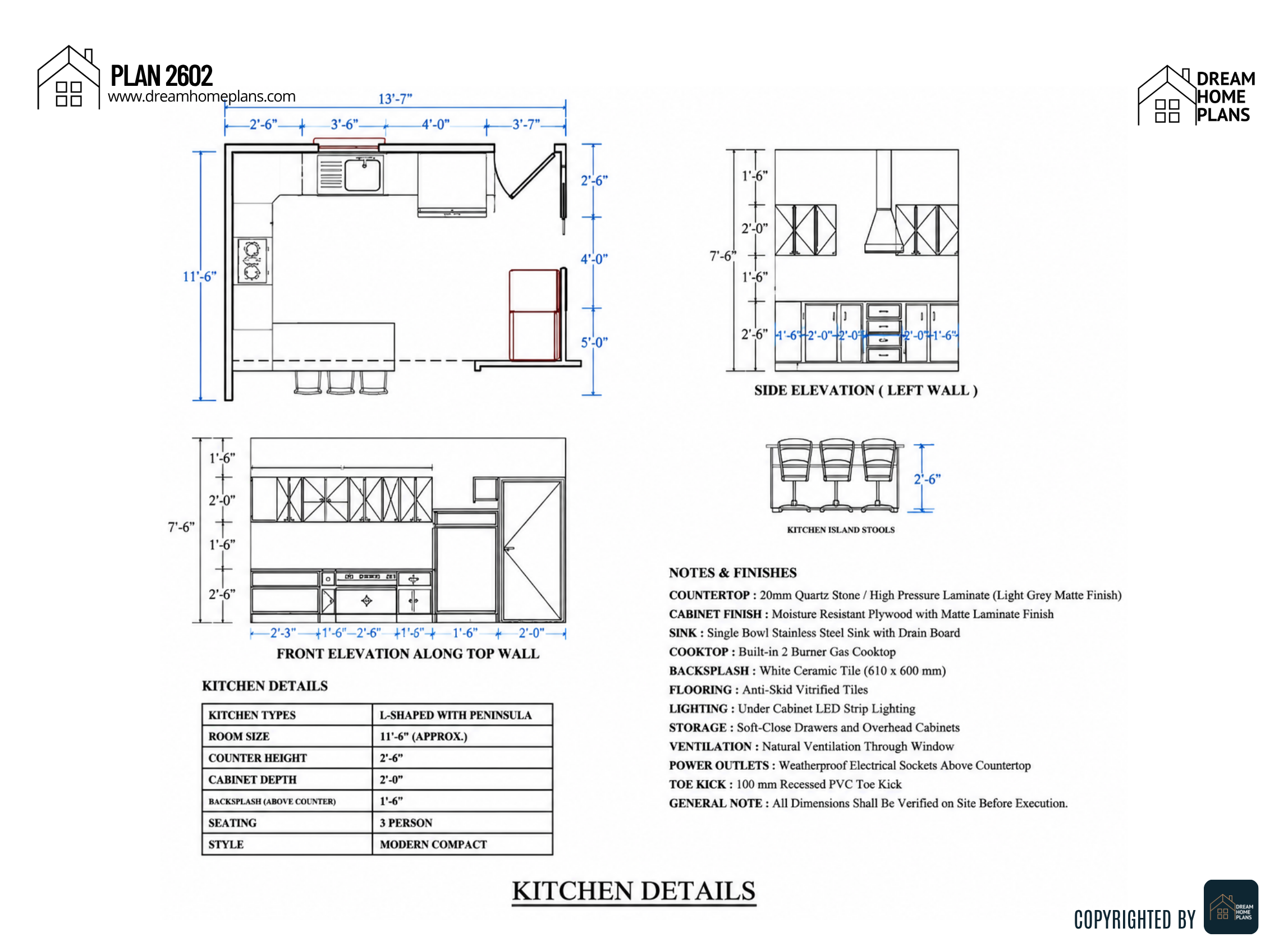

- Kitchen Details

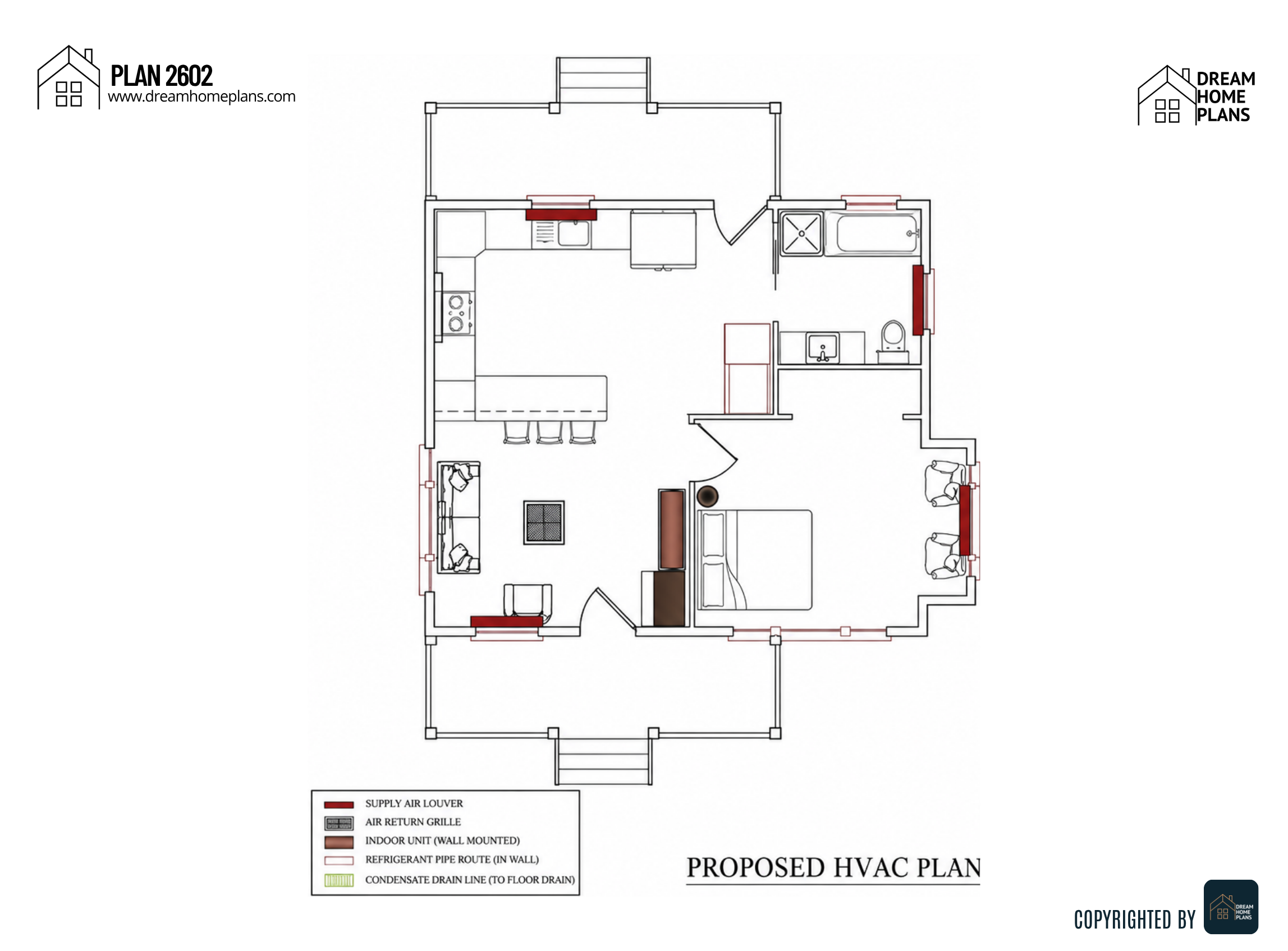

- HVAC Plan
- Electrical Plan
- Plumbing Plan
- Door & Window Details
- Construction Details
- Material Specifications
Important Notes:
- No physical printed plans included; digital files only
- Editable CAD file included with the purchase
- Consult with a licensed builder or architect to ensure compliance with your local building codes
- Plans are intended for personal construction use only; redistribution or resale is prohibited
- Due to the digital nature of this product, returns and exchanges are not accepted
This plan is an excellent choice for anyone looking to build a modern cottage, tiny house, guest house, vacation cabin, Airbnb rental, or compact family home. With its efficient layout, attractive exterior, and complete construction drawings, this design offers everything you need to bring your dream home to life. Download your plans today and start building your perfect cottage retreat!
What's Included
What's Included in Your Plan
When you purchase this plan, you’ll receive a comprehensive set of digital drawings and details to guide you through every step of building your dream home. Each plan includes the following:
Important Notes
Digital Files Only: No physical printed plans are included with your purchase. All files are provided in a digital format for your convenience.
It is highly recommended to consult with a licensed builder or architect to ensure compliance with local building codes and regulations.
Personal Use Only: These plans are intended for personal use only. Redistribution, resale, or sharing of the files is strictly prohibited.
No Returns: Due to copyright laws and the nature of digital products, returns or exchanges are not available.
Source Files Included
CAD Files: Editable CAD files to modify and adapt the design to your specific needs.
SketchUp Files: 3D SketchUp models for a detailed and interactive view of the design.
This plan is perfect for anyone looking to build their dream home with a touch of elegance and modern house aesthetic. Ready to bring your vision to life? Download your plan today and take the first step towards your serene homestead retreat.
Drawings Included
Presentation Drawing: A visual overview of the design, showcasing the aesthetic and layout.
Working Drawing: Detailed drawings that include all necessary construction notes and specifications.
West & East Elevation: Side views of the house, showing the heights and finishes from the west and east perspectives.
South & North Elevation: Front and rear views of the house, outlining the heights and finishes from the south and north perspectives.

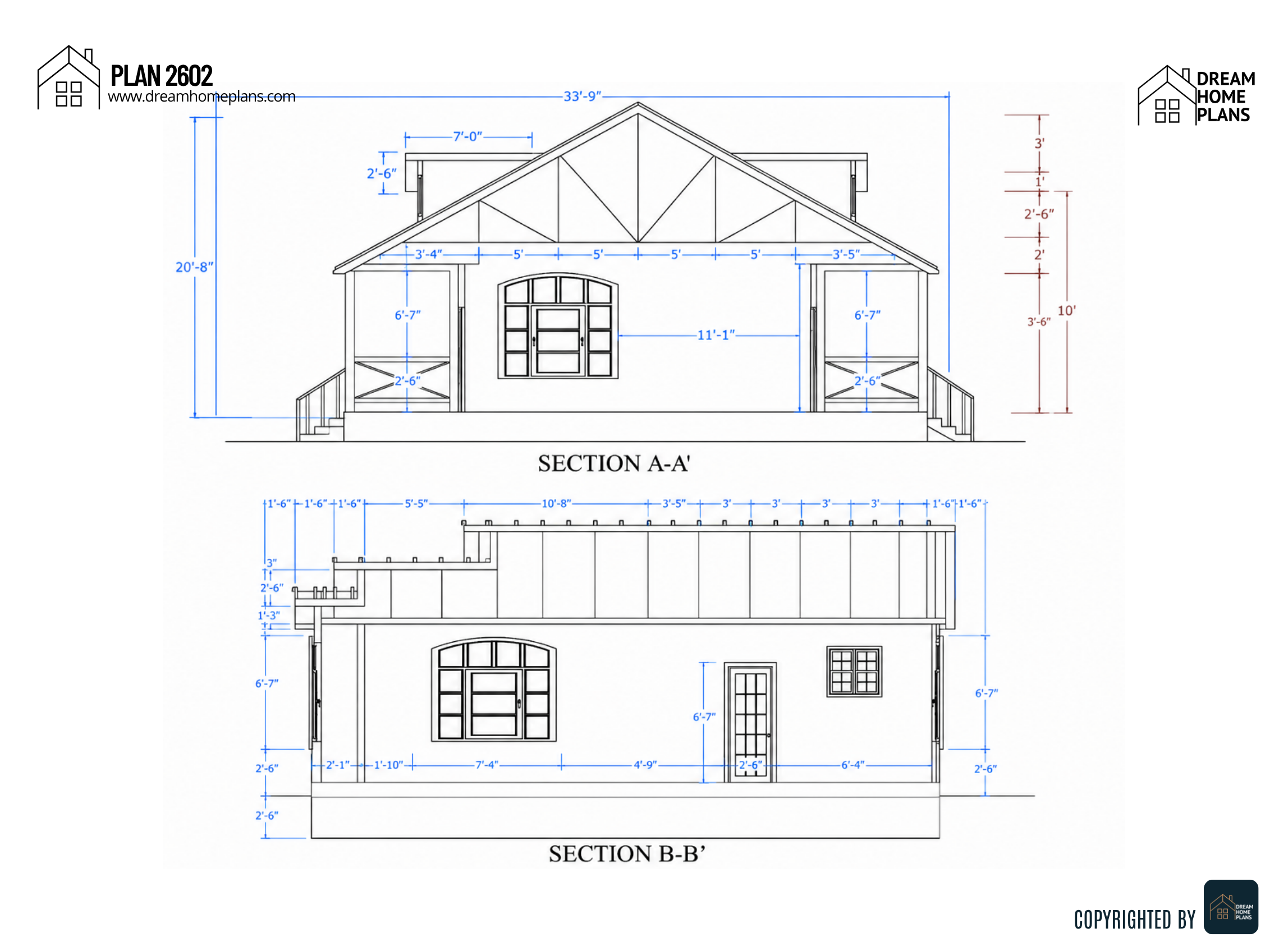

Section A-A': A cross-sectional view that details the interior structure along the A-A’ line.
Section B-B': A cross-sectional view that details the interior structure along the B-B’ line.
Section C-C': A cross-sectional view that details the interior structure along the C-C’ line.
Structural Layout: The foundational framework, including floor layouts and roof structures.
Wall Framing Details: Specifics on how each wall is constructed, including dimensions and materials.
Post Details: Information on the structural posts that support the building.
Header Details: Detailed drawings of the header construction above windows and doors.
Steel Truss Details: Layout and specifications for any steel trusses used in the structure.
Joining Details: Information on how various elements of the building are connected.

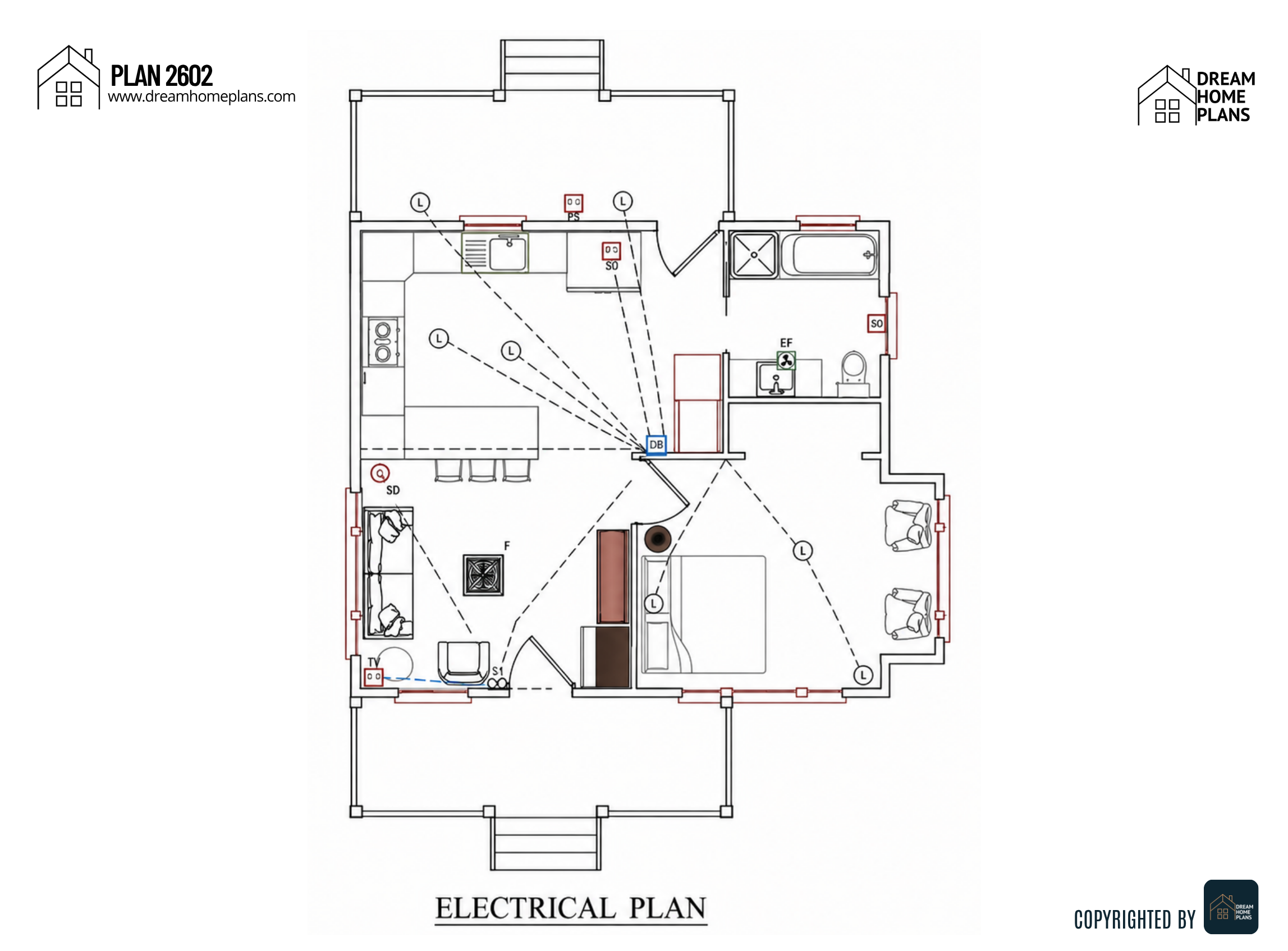

Electrical Drawing: A layout of the electrical plan, including the placement of outlets, switches, and fixtures.

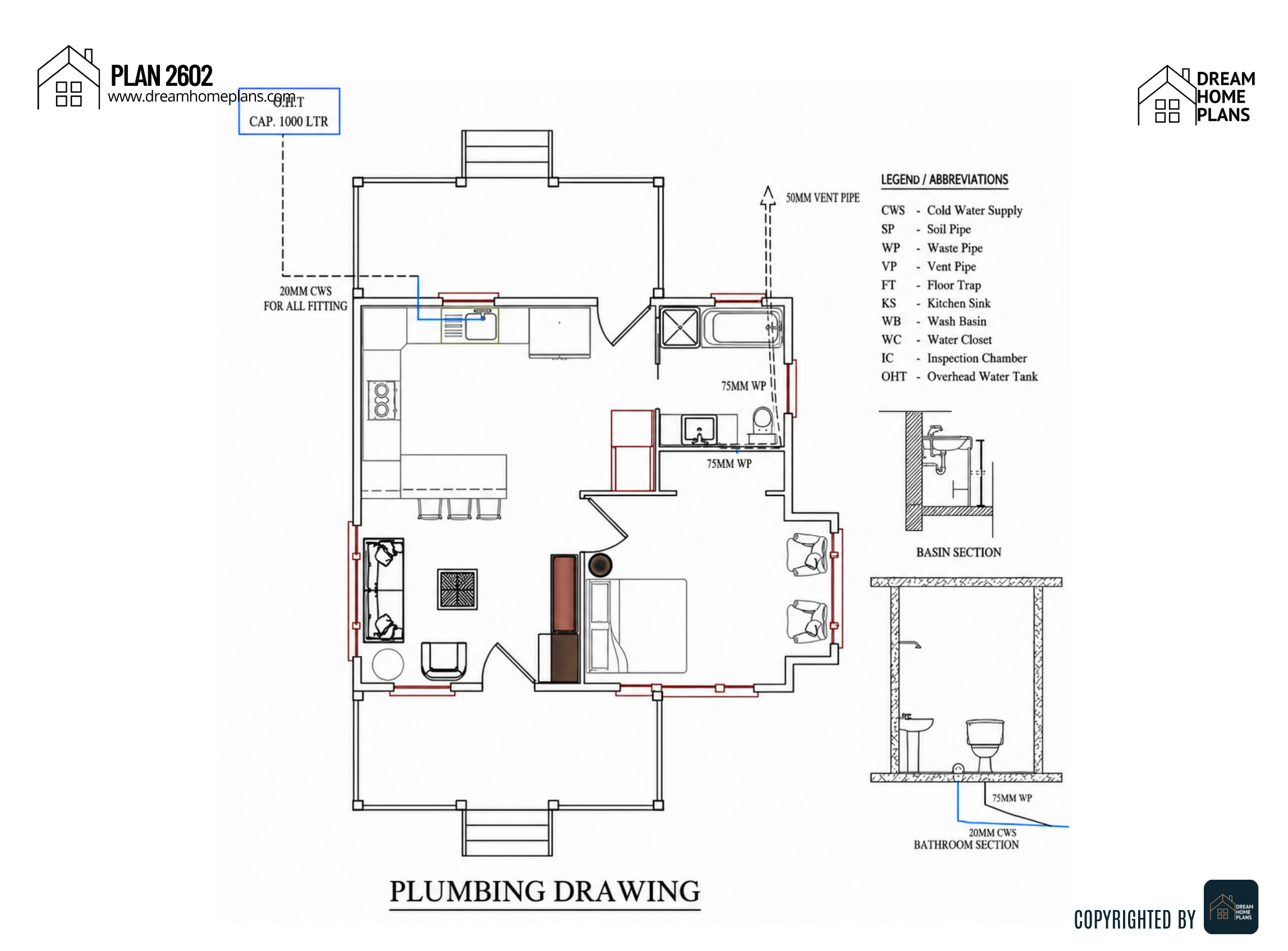

Plumbing Drawing: Detailed plumbing layout, showing the placement of pipes, fixtures, and connections.
