About This Plan
Item Overview
• Instant Digital Download: 1 PDF included
• Handmade item
Item Details:
-Bed: 4
-Bath: 3
-Garage: 2 car
-Total area: 2498 sqft

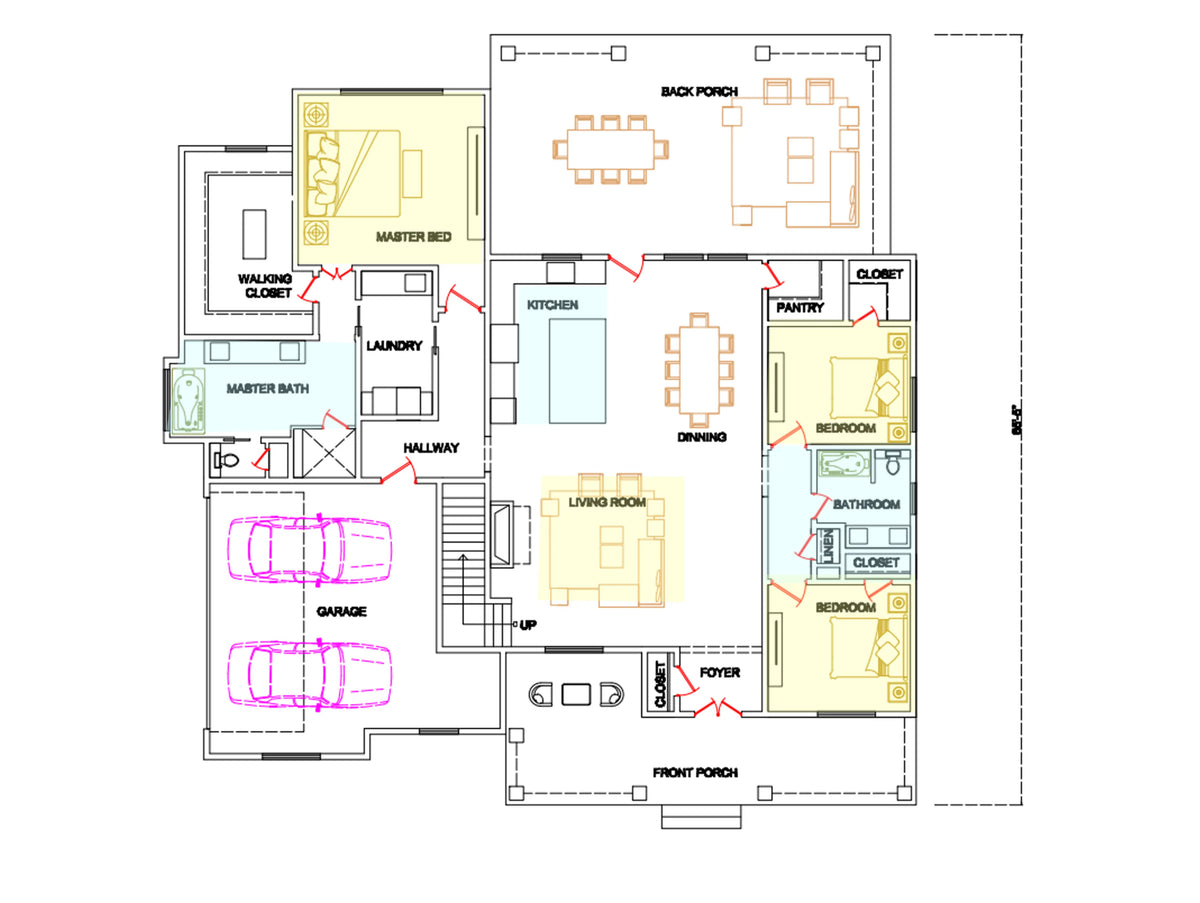

This two-story house has a total area of 2,498 square feet and is designed for a family that values space and privacy. The house features 4 bedrooms and 3 bathrooms, including a master bedroom with an ensuite bathroom, and two other bedrooms sharing a bathroom. The fourth bedroom could be located on the ground floor, making it ideal for guests or for use as a home office.
The living spaces are likely to be located on the ground floor, including a spacious living room, a dining room, and a kitchen with a breakfast bar or island. There could also be a separate family room or den for additional living space. The ground floor may also feature a laundry room, a powder room, and storage spaces.
The second floor could have a small loft area, which could be used as a study or reading nook. The two bedrooms on this floor share a bathroom, and there could also be a balcony or terrace area for outdoor relaxation.
The house is designed with a two-car garage, which could be attached or detached, depending on the owner's preferences. The architectural style of the house could vary, but it is likely to be a modern or contemporary design with clean lines and functional spaces.
Important Notes:
-No physical printed plans included; digital files only
-Consult with a licensed builder or architect for local code compliance
-Plans are for personal use only; redistribution is prohibited
-Due to copyright laws, returns are not available
What's Included
What's Included in Your Plan
When you purchase this plan, you’ll receive a comprehensive set of digital drawings and details to guide you through every step of building your dream home. Each plan includes the following:
Important Notes
Digital Files Only: No physical printed plans are included with your purchase. All files are provided in a digital format for your convenience.
It is highly recommended to consult with a licensed builder or architect to ensure compliance with local building codes and regulations.
Personal Use Only: These plans are intended for personal use only. Redistribution, resale, or sharing of the files is strictly prohibited.
No Returns: Due to copyright laws and the nature of digital products, returns or exchanges are not available.
Source Files Included
CAD Files: Editable CAD files to modify and adapt the design to your specific needs.
SketchUp Files: 3D SketchUp models for a detailed and interactive view of the design.
This plan is perfect for anyone looking to build their dream home with a touch of elegance and modern house aesthetic. Ready to bring your vision to life? Download your plan today and take the first step towards your serene homestead retreat.

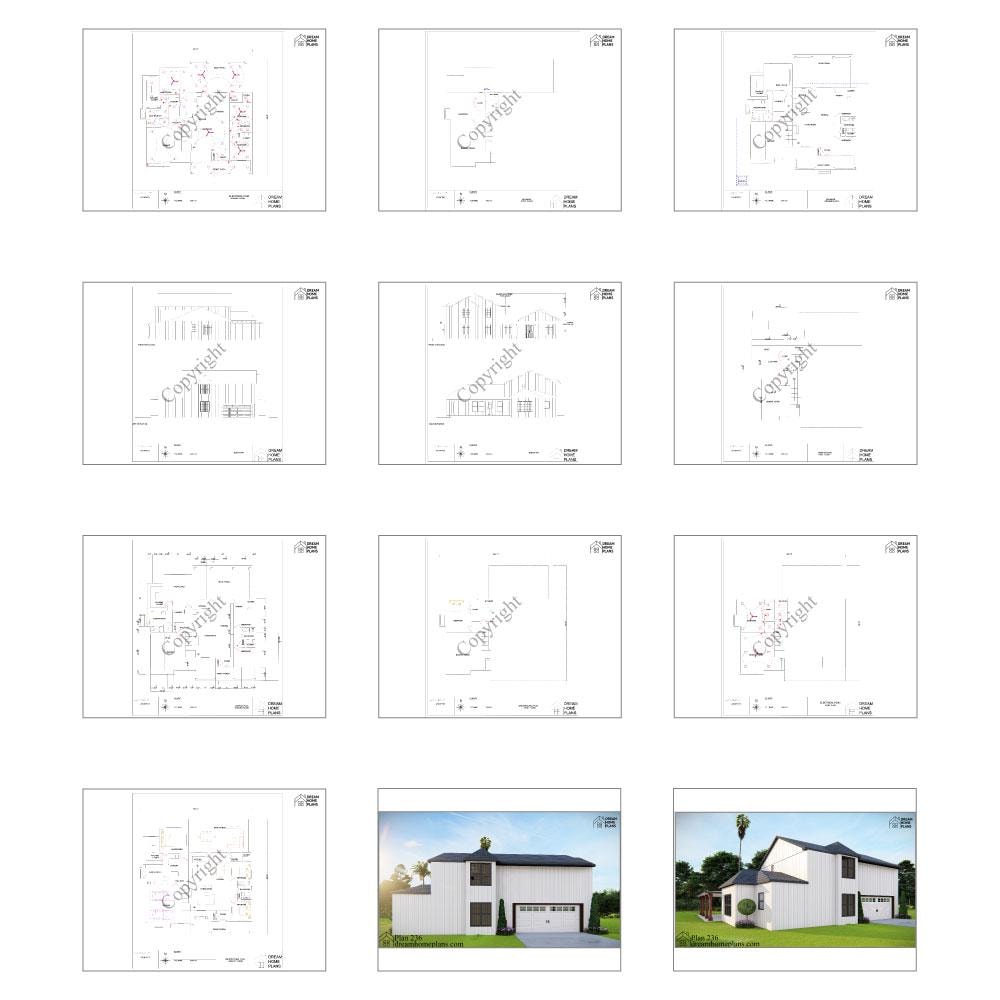

Drawings Included
Presentation Drawing: A visual overview of the design, showcasing the aesthetic and layout.
Working Drawing: Detailed drawings that include all necessary construction notes and specifications.
West & East Elevation: Side views of the house, showing the heights and finishes from the west and east perspectives.
South & North Elevation: Front and rear views of the house, outlining the heights and finishes from the south and north perspectives.
Section A-A': A cross-sectional view that details the interior structure along the A-A’ line.
Section B-B': A cross-sectional view that details the interior structure along the B-B’ line.
Section C-C': A cross-sectional view that details the interior structure along the C-C’ line.
Structural Layout: The foundational framework, including floor layouts and roof structures.
Wall Framing Details: Specifics on how each wall is constructed, including dimensions and materials.
Post Details: Information on the structural posts that support the building.
Header Details: Detailed drawings of the header construction above windows and doors.
Steel Truss Details: Layout and specifications for any steel trusses used in the structure.
Joining Details: Information on how various elements of the building are connected.
Electrical Drawing: A layout of the electrical plan, including the placement of outlets, switches, and fixtures.
Plumbing Drawing: Detailed plumbing layout, showing the placement of pipes, fixtures, and connections.
Material List: A comprehensive list of materials required for the construction of your home.
Slab Details: Information regarding the foundation slab, including dimensions and materials used.
