American Cottage 900 Sqft 2-Bedroom Architectural Plans - Modern Cabin Blueprint with Loft, Open Floor Plan & Patio - Digital PDF Download
Complete architectural plans of a modern 30' x 30' American cottage featuring 2 bedrooms and a flexible loft space!
This versatile design is perfect for families seeking a blend of simplicity and functionality. The cottage is crafted for maximum comfort, featuring an open-concept living area, large windows for abundant natural light, and a welcoming patio. The design emphasizes budget-friendly construction while maintaining elegance and practicality. Built to meet the International Building Code (IBC), it is suitable for various locations and climates.
Key Features:
1. Total Area: 900 SF
2. Interior Heated Space: Approximately 875 SF
3. Foundation: Concrete pier
4. Ceiling Height: 9'0"
5. Bedrooms: 2
6. Bathrooms: 1
7. Loft Space: Optional
8. Roof Load: Designed per ASCE 7-16 standards
The plans include 18 fully dimensioned and annotated sheets, ready for construction:
1. Materials List

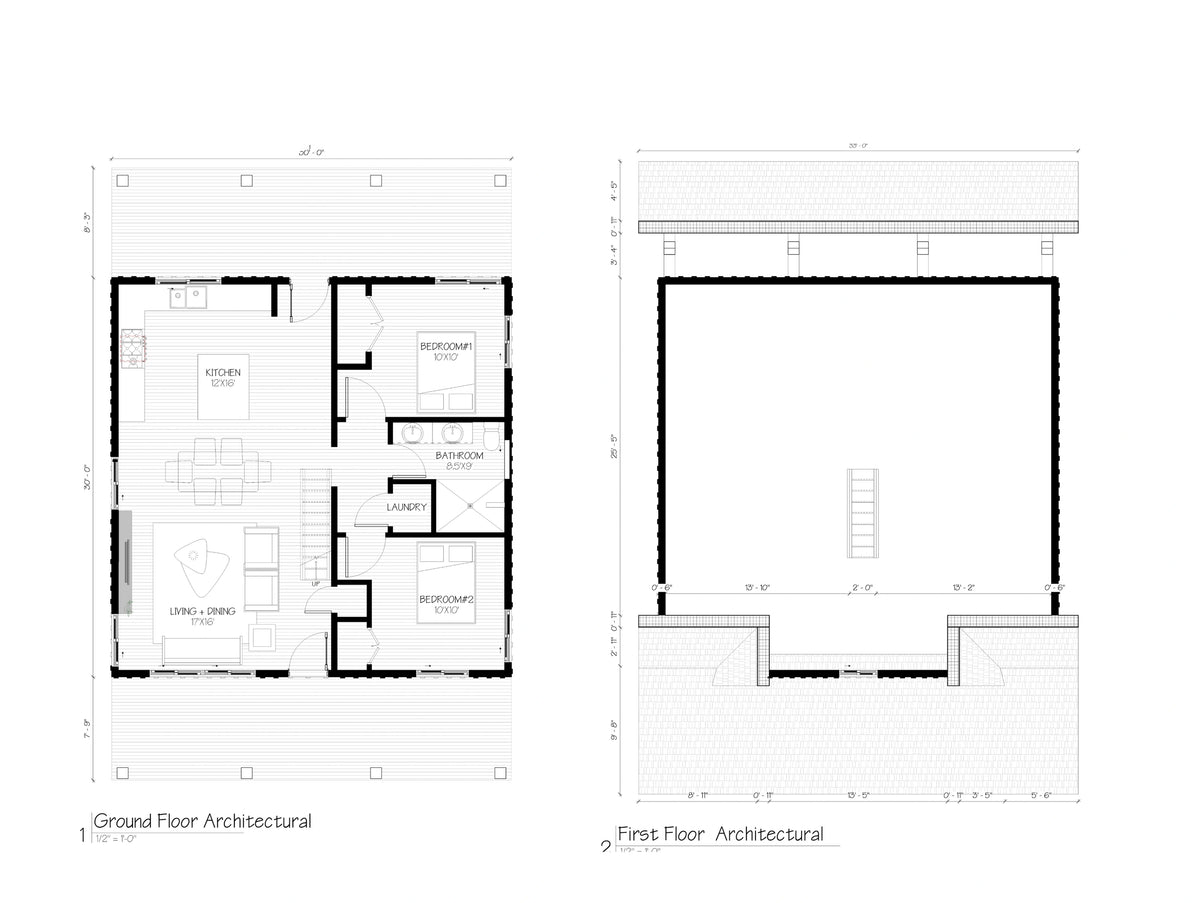

2. Floor Plans
3. Elevations
4. Foundation Plan
5. Roof Plan
6. Electrical Plan
7. Plumbing Plan
8. Construction Details
9. Door and Window Schedules
Download Details:
Digital Download (PDF)
Important Notes:
-No physical printed plans included; digital files only
-Consult with a licensed builder or architect for local code compliance
-Plans are for personal use only; redistribution is prohibited
-Due to copyright laws, returns are not available
What's Included
What's Included in Your Plan
When you purchase this plan, youāll receive a comprehensive set of digital drawings and details to guide you through every step of building your dream home. Each plan includes the following:
Important Notes
Digital Files Only:Ā No physical printed plans are included with your purchase. All files are provided in a digital format for your convenience.
It is highly recommended to consult with a licensed builder or architect to ensure compliance with local building codes and regulations.
Personal Use Only:Ā These plans are intended for personal use only. Redistribution, resale, or sharing of the files is strictly prohibited.
No Returns:Ā Due to copyright laws and the nature of digital products, returns or exchanges are not available.
Source Files Included
CAD Files: Editable CAD files to modify and adapt the design to your specific needs.
SketchUp Files: 3D SketchUp models for a detailed and interactive view of the design.
This plan is perfect for anyone looking to build their dream home with a touch of elegance and modern house aesthetic. Ready to bring your vision to life? Download your plan today and take the first step towards your serene homestead retreat.
Drawings Included
Presentation Drawing: A visual overview of the design, showcasing the aesthetic and layout.
Working Drawing: Detailed drawings that include all necessary construction notes and specifications.
West & East Elevation: Side views of the house, showing the heights and finishes from the west and east perspectives.
South & North Elevation: Front and rear views of the house, outlining the heights and finishes from the south and north perspectives.
Section A-A': A cross-sectional view that details the interior structure along the A-Aā line.
Section B-B': A cross-sectional view that details the interior structure along the B-Bā line.
Section C-C': A cross-sectional view that details the interior structure along the C-Cā line.
Structural Layout: The foundational framework, including floor layouts and roof structures.
Wall Framing Details: Specifics on how each wall is constructed, including dimensions and materials.
Post Details: Information on the structural posts that support the building.
Header Details: Detailed drawings of the header construction above windows and doors.
Steel Truss Details: Layout and specifications for any steel trusses used in the structure.
Joining Details: Information on how various elements of the building are connected.
Electrical Drawing: A layout of the electrical plan, including the placement of outlets, switches, and fixtures.
Plumbing Drawing: Detailed plumbing layout, showing the placement of pipes, fixtures, and connections.
Material List: A comprehensive list of materials required for the construction of your home.
Slab Details: Information regarding the foundation slab, including dimensions and materials used.
