Download our professionally designed Modern Small Cabin House Plans (25' x 32'), perfect for a cozy getaway or full-time living. This complete architectural drawing set includes detailed construction blueprints and a 3D SketchUp model — ideal for contractors, DIY builders, and designers. The layout features a loft, 3 bedrooms, 2 bathrooms, and an open-concept living space.
What’s Included in the Drawing Set (PDF Format):

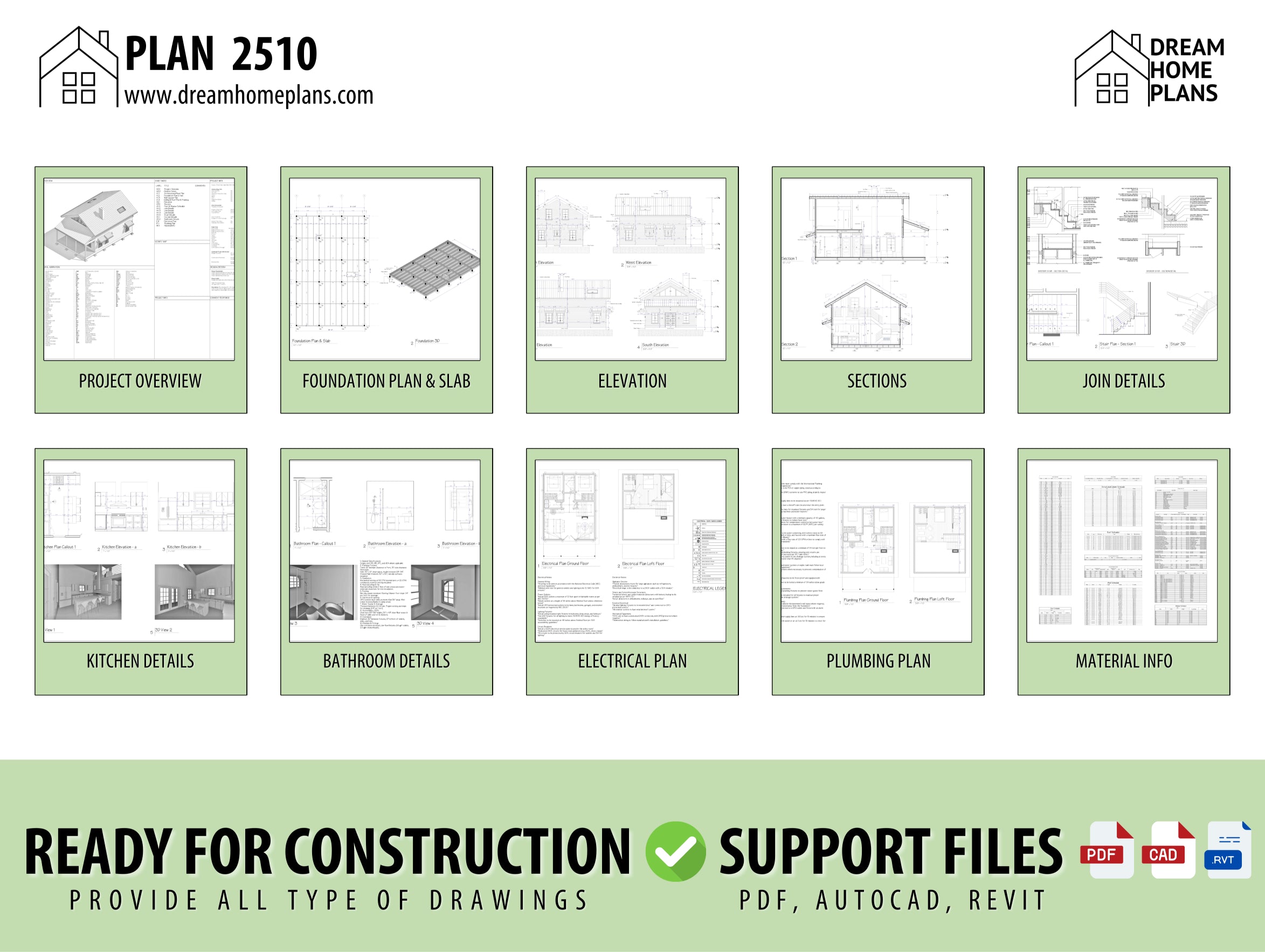

A0.1 – Project Overview
A0.2 – General Notes

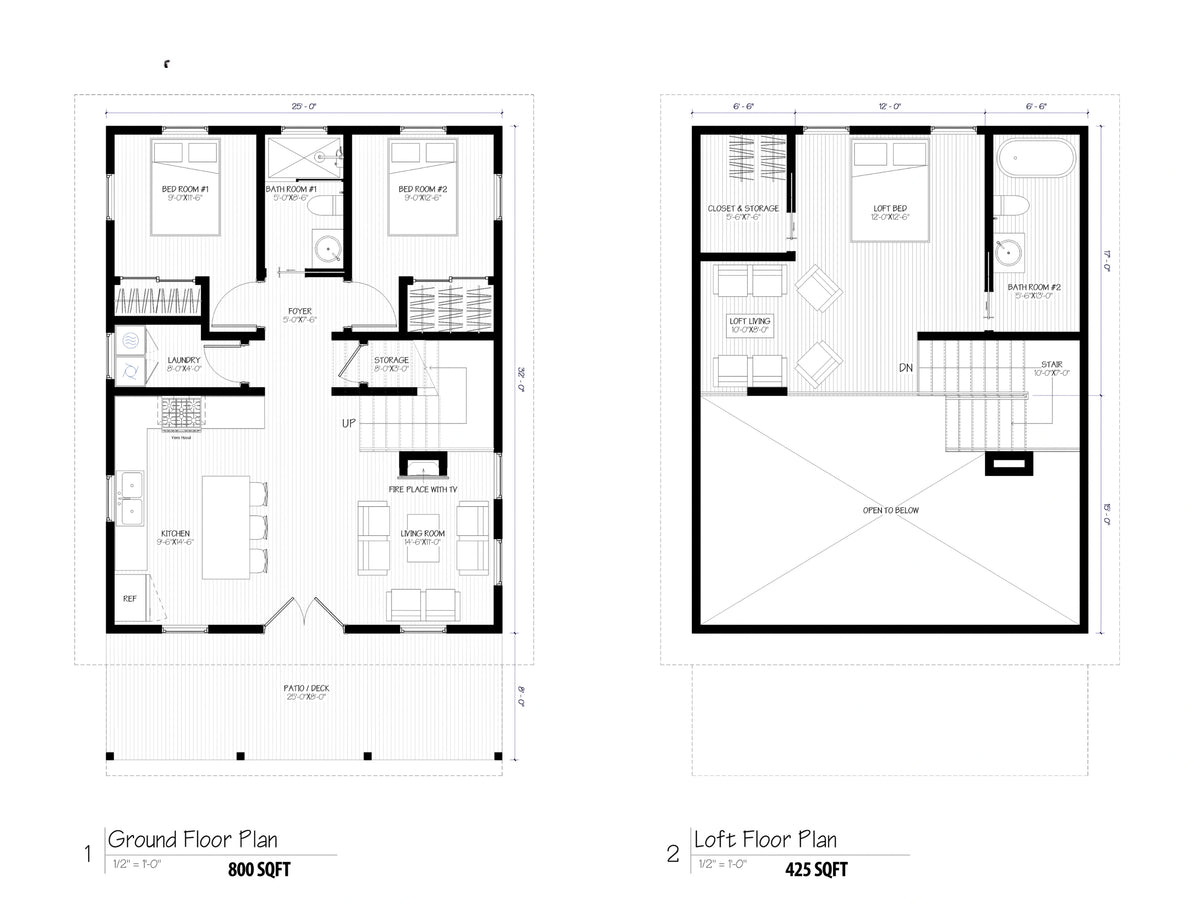

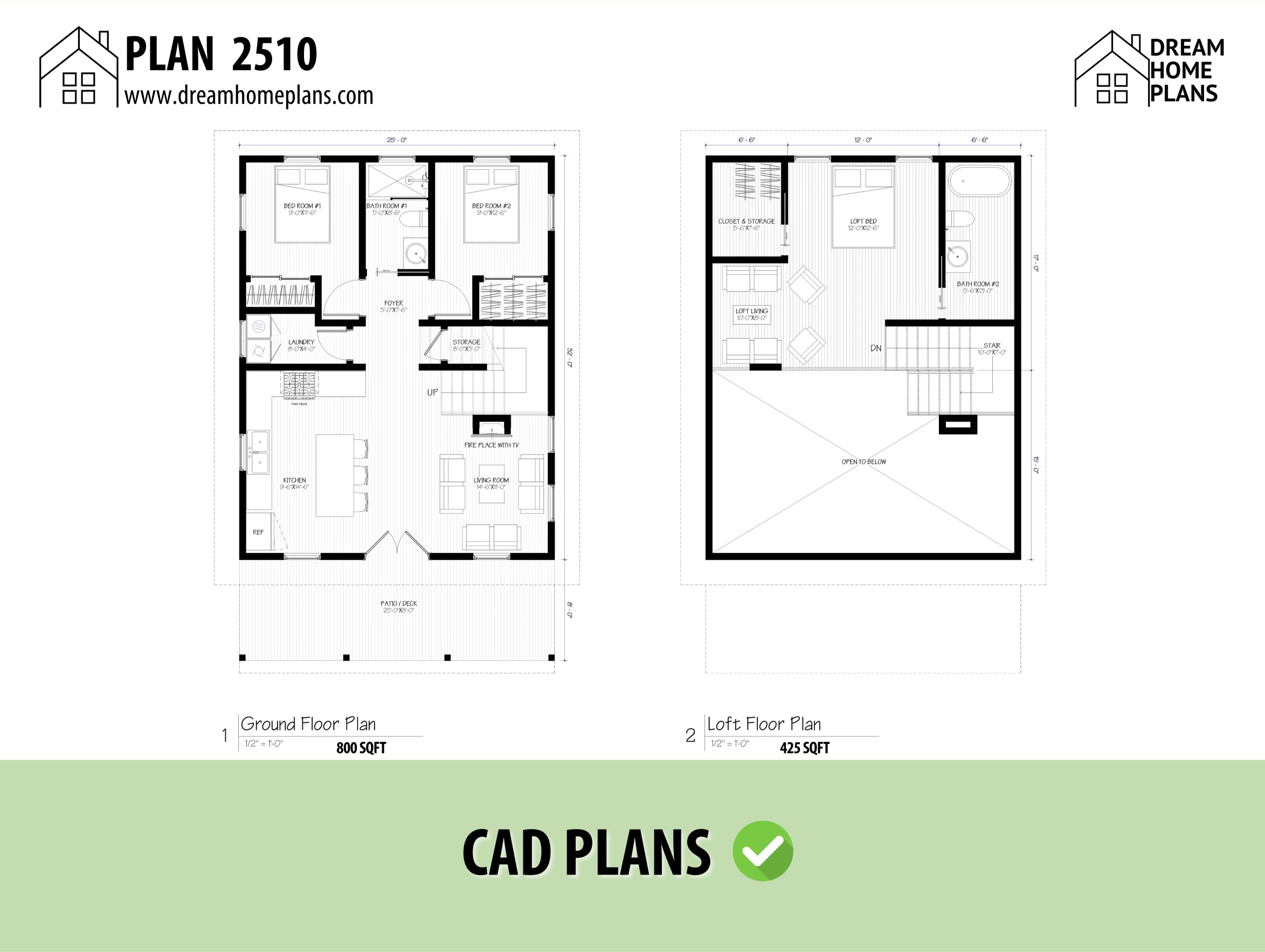

A1.1 – Architectural Floor Plan
A1.2 – Foundation Plan & Slab
A1.3 – Wall Layout Plan
A1.4 – Ceiling & Roof Plan with Framing Details
A2.1 – Elevations (Front, Rear, Side)
A3.1 – Section View
A4.1 – Door & Window Schedule
A4.2 - A4.4 – Joinery Details
A4.5 – Stair Details
A5.1 – Kitchen Details
A5.2 – Bathroom Details
E1.1 – Electrical Plan
P1.1 – Plumbing Plan
M1.1 – Material Specifications
🏠 Floor Area Details:
- Ground Floor Living Area: 800 sq ft
- Loft Living Area: 425 sq ft
- Covered Deck: 200 sq ft
- Total Footprint: 1,425 sq ft
📐 Room-by-Room Breakdown:
- Bedroom 1 & Closet: 104 sq ft
- Bedroom 2 & Closet: 113 sq ft
- Loft Bedroom: 150 sq ft
- Loft Bath: 72 sq ft
- Loft Closet & Storage: 42 sq ft
- Bath 1: 43 sq ft
- Kitchen: 136 sq ft
- Living Room: 160 sq ft
- Laundry Room: 32 sq ft
- Foyer: 36 sq ft
- Storage: 24 sq ft
- Stairs: 70 sq ft
- Loft Living Area: 80 sq ft
Important Notes:
-No physical printed plans included; digital files only
-Consult with a licensed builder or architect for local code compliance
-Plans are for personal use only; redistribution is prohibited
-Due to copyright laws, returns are not available
Whether you're dreaming of a peaceful retreat in the woods or planning a compact and efficient full-time residence, this modern cabin plan offers the perfect blend of rustic charm and contemporary functionality. Designed with attention to detail and builder-friendly documents, it’s your first step toward creating a beautiful, personalized home. Start building your dream today with this instant download!
What's Included in Your Plan
When you purchase this plan, you’ll receive a comprehensive set of digital drawings and details to guide you through every step of building your dream home. Each plan includes the following:
Drawings Included:
- Presentation Drawing: A visual overview of the design, showcasing the aesthetic and layout.
- Working Drawing: Detailed drawings that include all necessary construction notes and specifications.
- West & East Elevation: Side views of the house, showing the heights and finishes from the west and east perspectives.
- South & North Elevation: Front and rear views of the house, outlining the heights and finishes from the south and north perspectives.
- Section A-A': A cross-sectional view that details the interior structure along the A-A’ line.
- Section B-B': A cross-sectional view that details the interior structure along the B-B’ line.
- Section C-C': A cross-sectional view that details the interior structure along the C-C’ line.

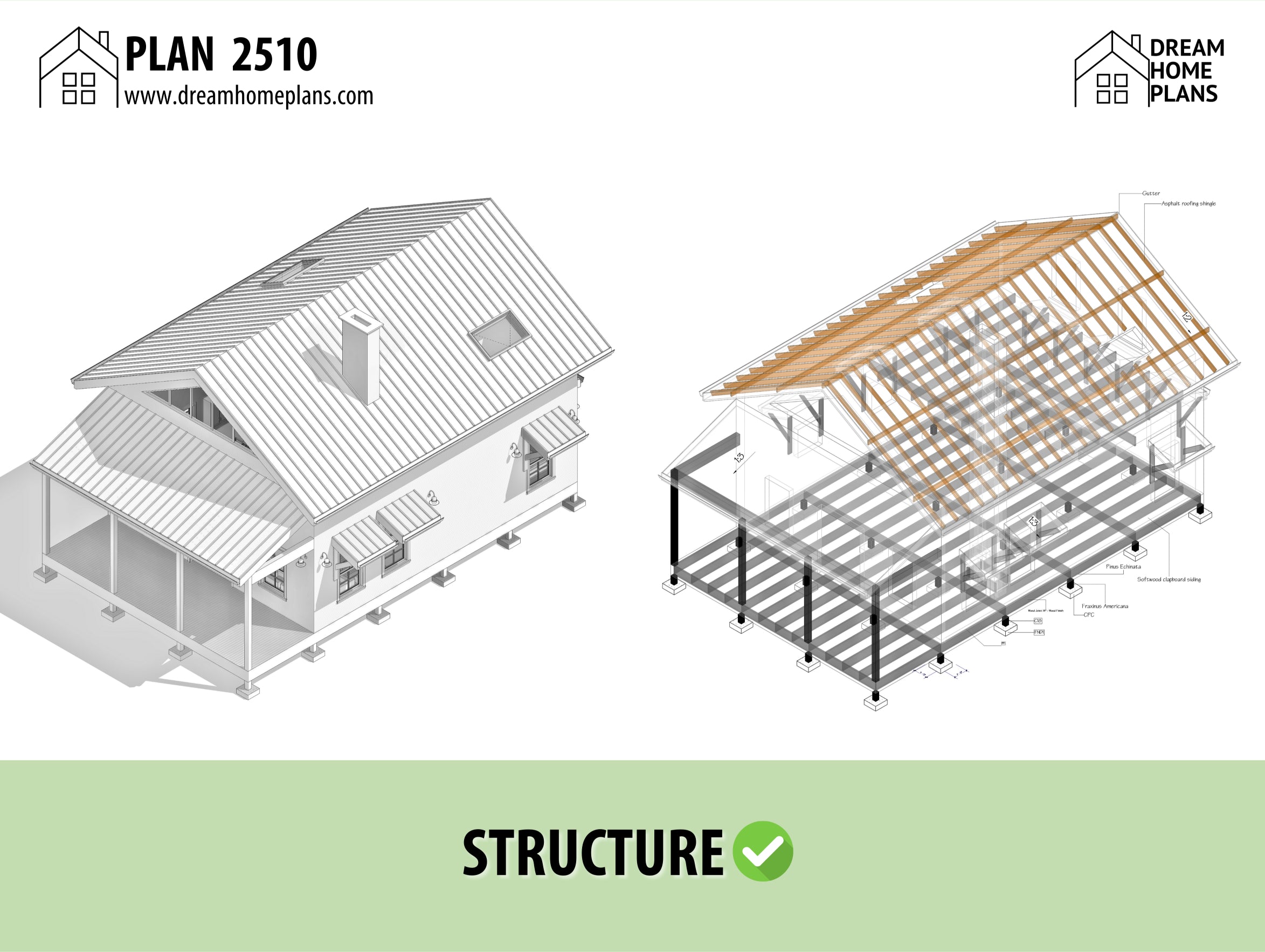

- Structural Layout: The foundational framework, including floor layouts and roof structures.
