About This Plan

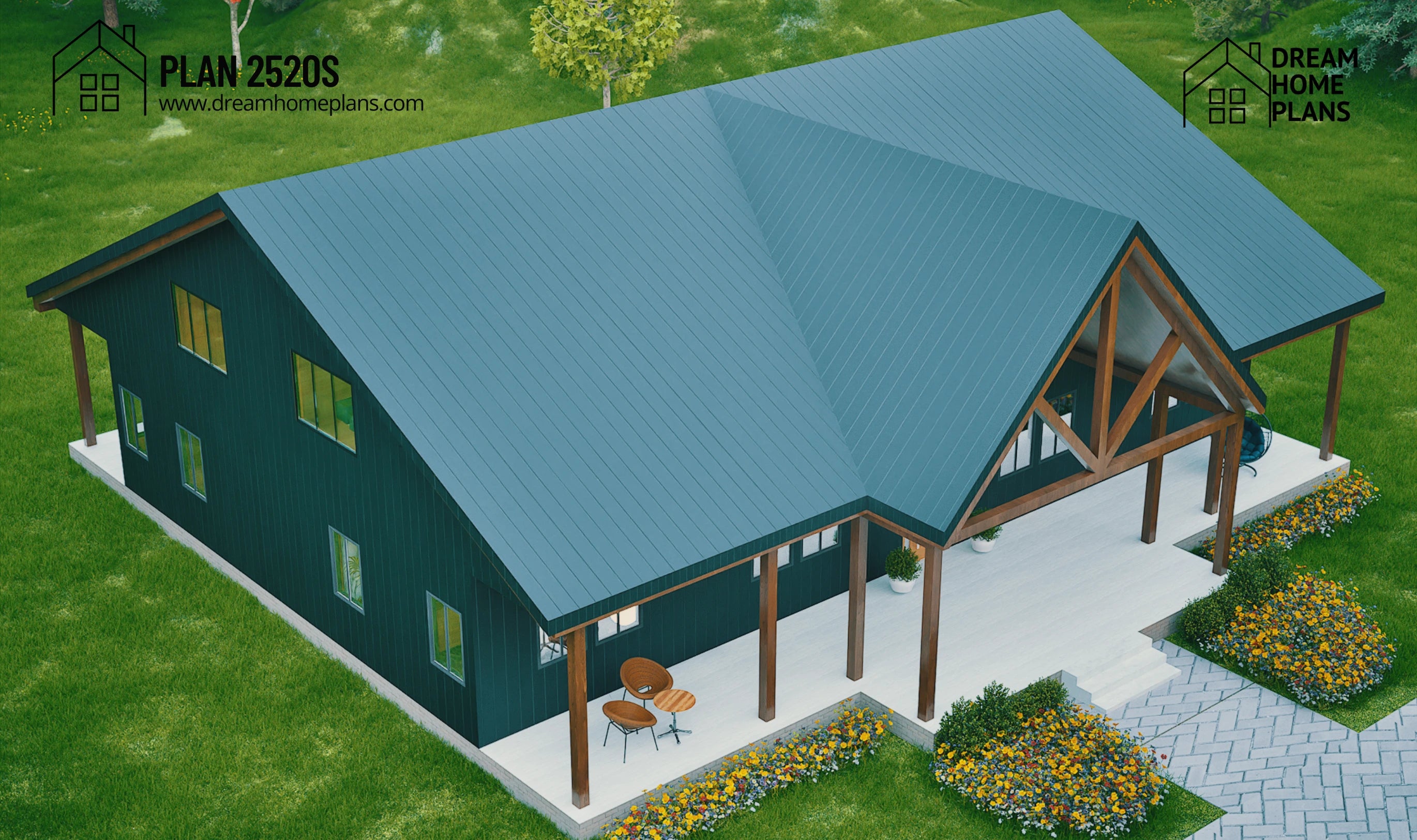

Experience the perfect blend of spacious comfort and modern design with this Modern Farmhouse Ranch Plan. Spanning an impressive 4,440 square feet, this elegant two-story home offers 3 bedrooms, 2.5 bathrooms, and a versatile loft, combining functionality with timeless farmhouse charm.

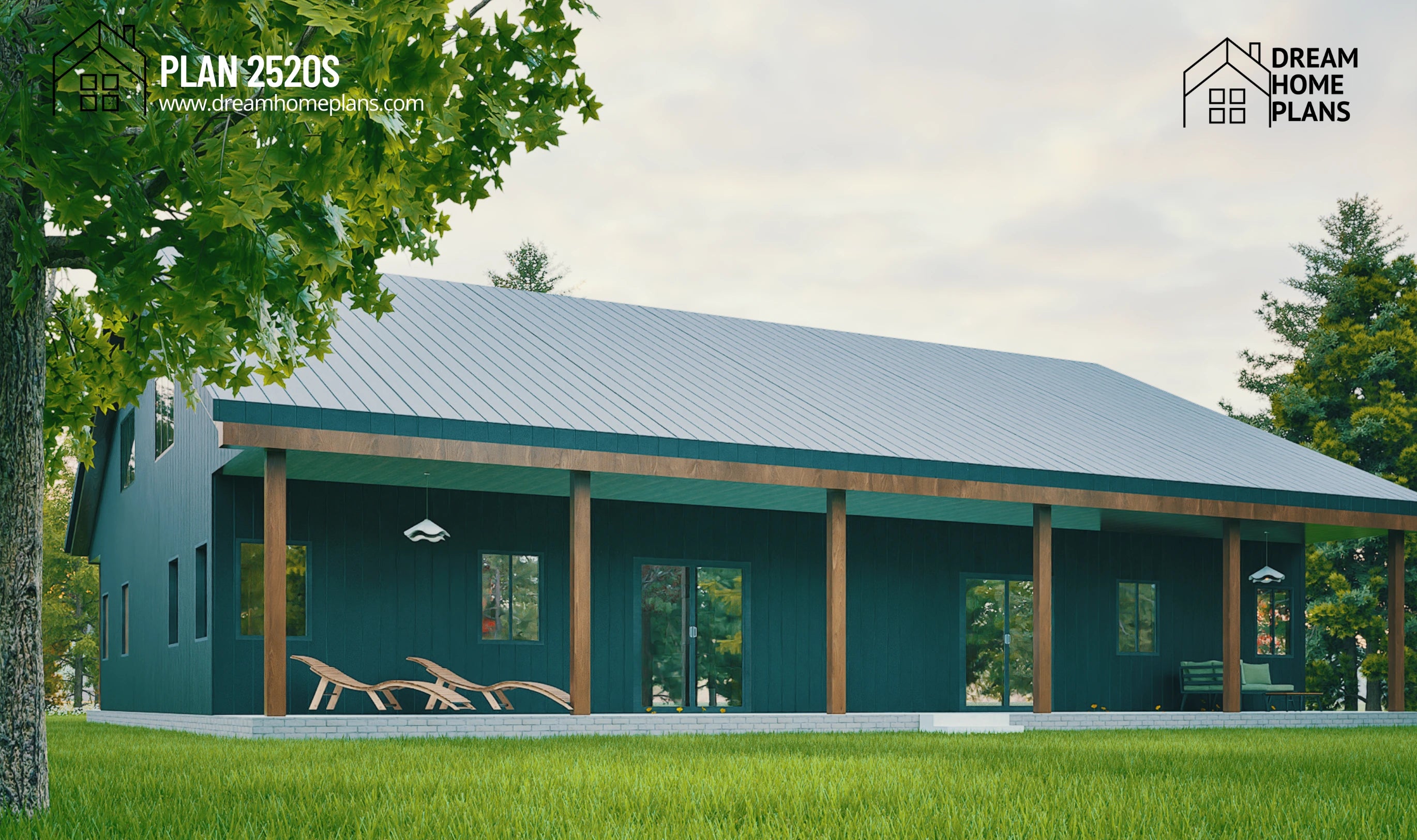

The open-concept living and kitchen area creates a bright, welcoming atmosphere ideal for family gatherings or entertaining guests. With front and rear porches (each 60ā²Ć8ā²), a dedicated office, and a large playroom, this plan delivers the perfect balance between work, play, and relaxation.
Whether you're looking to build a luxury farmhouse retreat, a modern ranch-style family home, or a spacious countryside residence, this design offers the ideal layout for comfortable living. Its thoughtful architecture merges rustic details with contemporary finishes, making it a perfect fit for any lifestyle.
This plan includes detailed blueprints with clearly labeled layoutsācovering everything from floor plans, elevations, and slab layouts to plumbing, electrical, wall, and insulation detailsāensuring a smooth and efficient building process.
Elevate your dream home experience with this beautifully designed Modern Farmhouse Ranch Planāa perfect mix of warmth, functionality, and sophistication.
Details:
Floor: 02
Bedrooms: 03
Bathrooms: 02.5
Width: 60ā² ft
Depth: 54ā² ft
Height: 25ā² ft
Total Living Area: 4,440 sq ft
- First Floor ā 3,240 sq ft
- Second Floor ā 1,200 sq ft

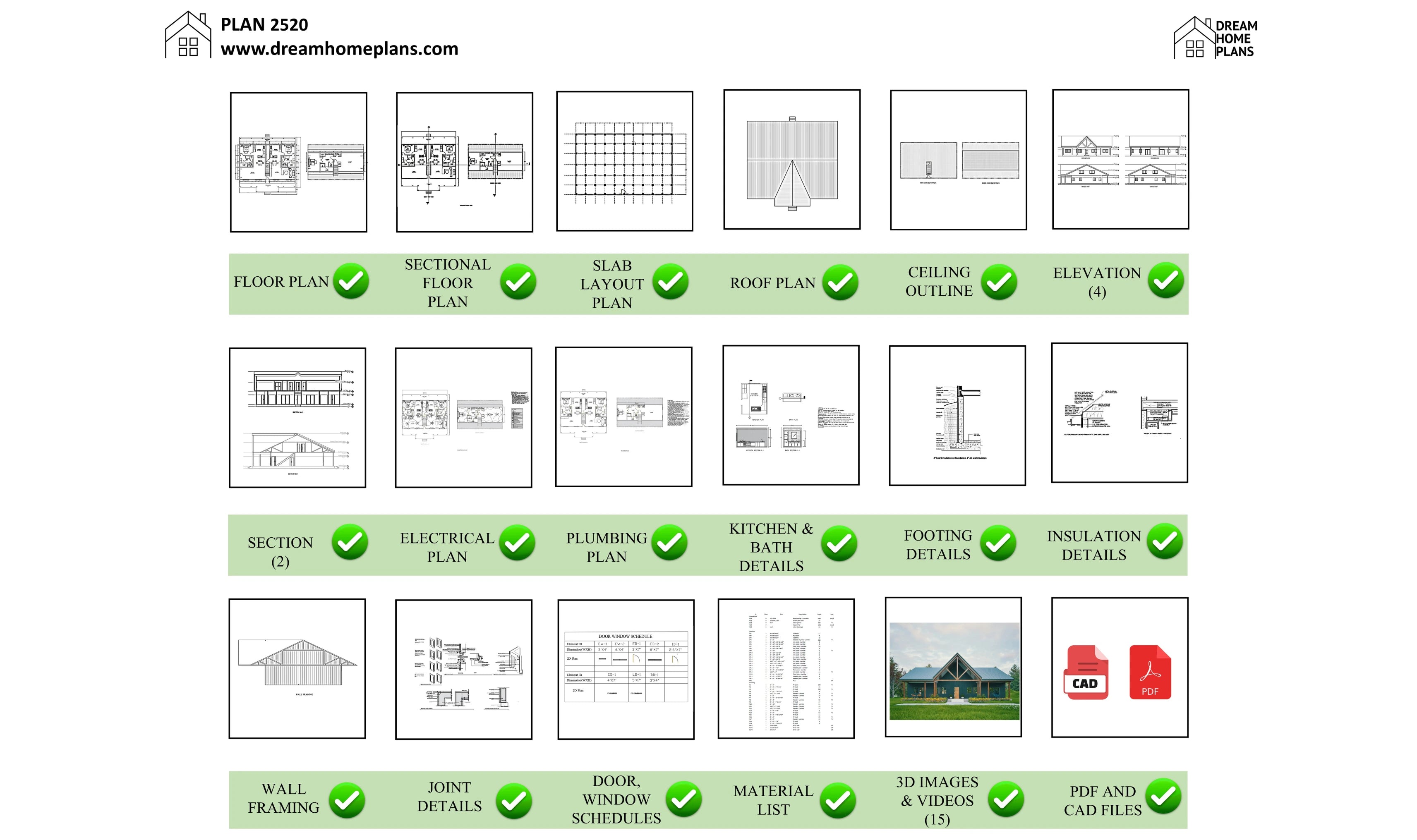

Drawing Included:

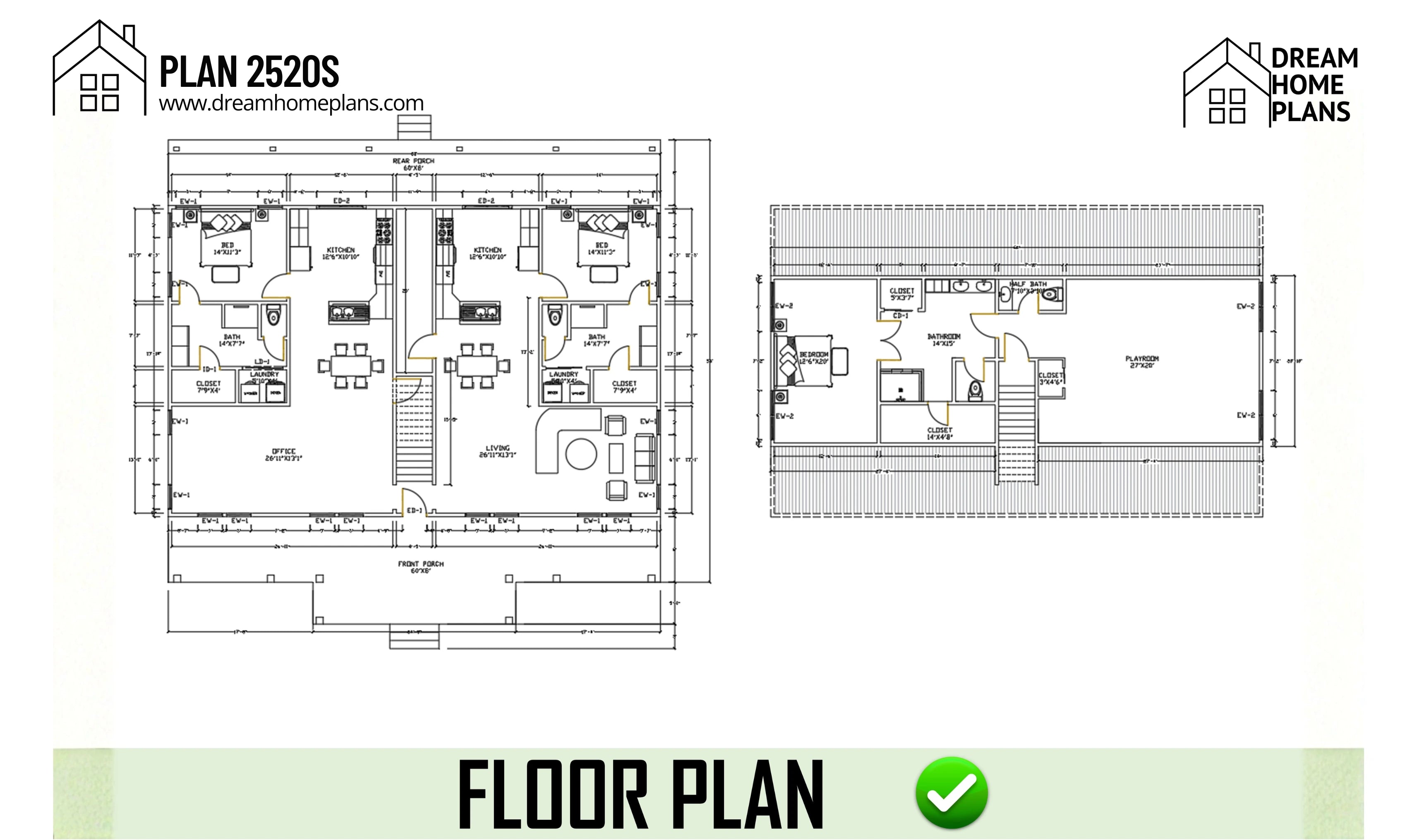

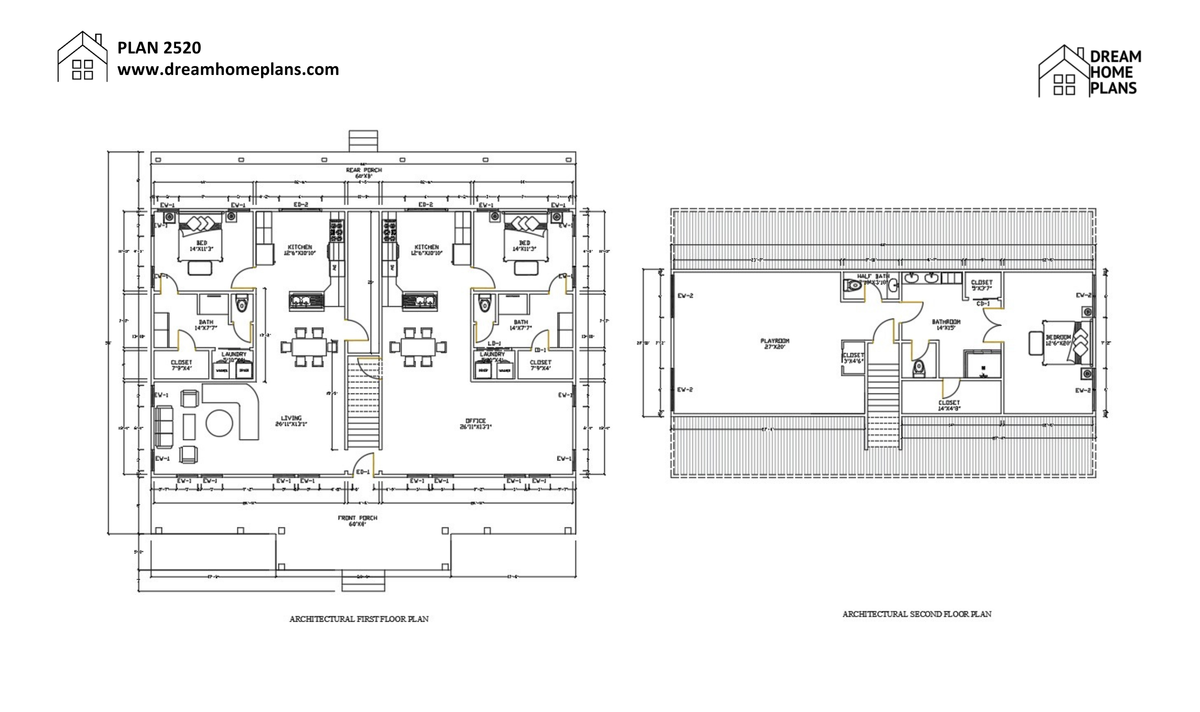

- First Floor Plan
- Second Floor Plan
- Loft / Playroom Layout
- Slab Layout Showing Load-Bearing Walls
- Sections in Floor Plan
- Section A-Aā² & Section B-Bā²

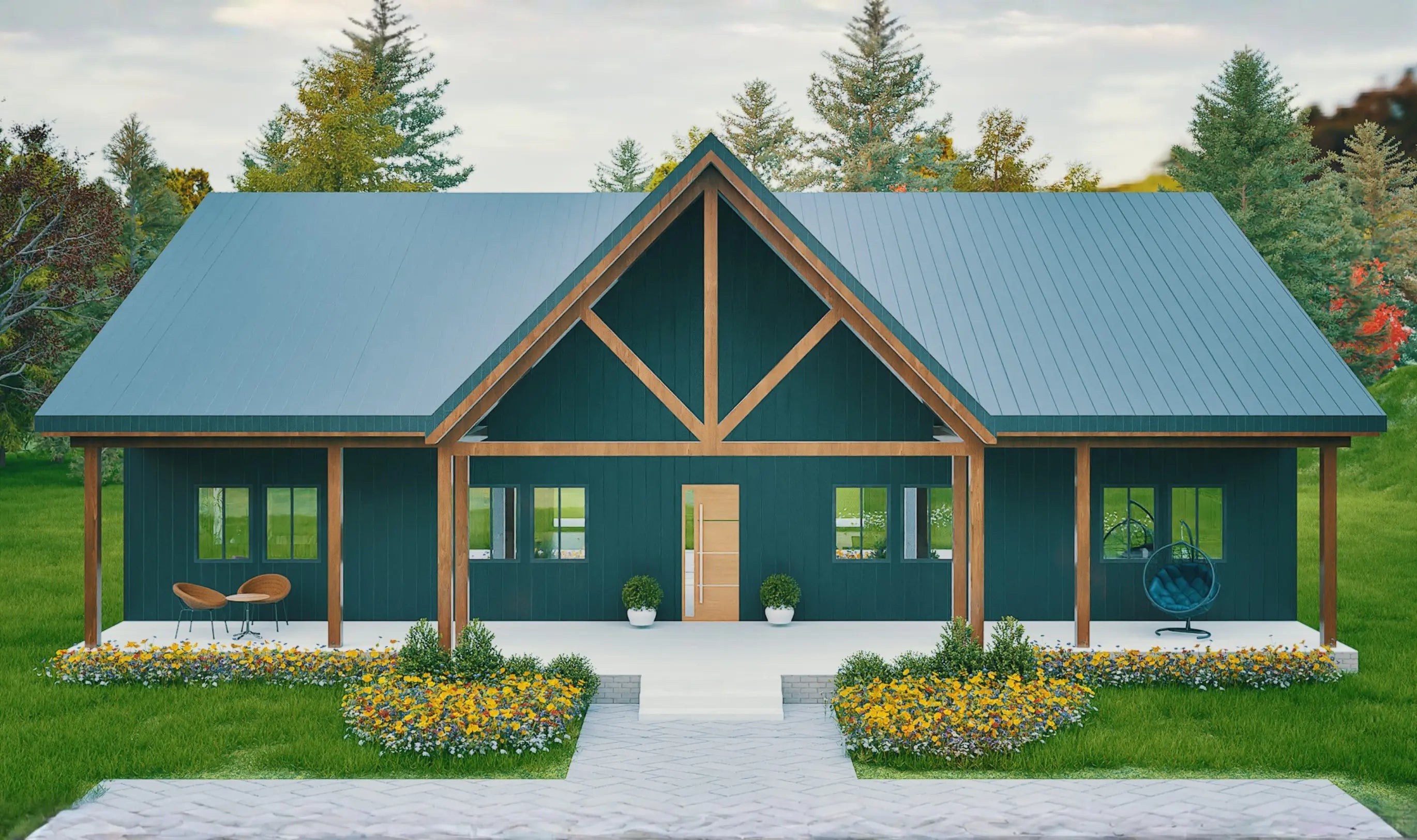

- East, West, North, and South Elevations
- Roof & Ceiling Outline
- Wall Framing & Insulation Details
- Door & Window Schedule
- Foundation & Footing Details
- Kitchen, Bath & Window Details
- Electrical Plan
- Plumbing Plan
Important Notes:
- No physical printed plans included; digital files only (PDF Download)
- Consult your local builder or architect for code compliance and engineering requirements
- Plans are for personal use only; redistribution is prohibited
- Due to copyright protection, returns are not accepted
This home plan is ideal for families or builders seeking a spacious modern farmhouse with a warm ranch aesthetic and efficient floor layout. Ready to build your forever home? Download your plan today and start your journey toward creating the perfect modern farmhouse retreat!
What's Included
What's Included in Your Plan
When you purchase this plan, youāll receive a comprehensive set of digital drawings and details to guide you through every step of building your dream home. Each plan includes the following:
Important Notes
Digital Files Only:Ā No physical printed plans are included with your purchase. All files are provided in a digital format for your convenience.
It is highly recommended to consult with a licensed builder or architect to ensure compliance with local building codes and regulations.
Personal Use Only:Ā These plans are intended for personal use only. Redistribution, resale, or sharing of the files is strictly prohibited.
No Returns:Ā Due to copyright laws and the nature of digital products, returns or exchanges are not available.
Source Files Included
CAD Files: Editable CAD files to modify and adapt the design to your specific needs.
SketchUp Files: 3D SketchUp models for a detailed and interactive view of the design.
This plan is perfect for anyone looking to build their dream home with a touch of elegance and modern house aesthetic. Ready to bring your vision to life? Download your plan today and take the first step towards your serene homestead retreat.
Drawings Included
Presentation Drawing: A visual overview of the design, showcasing the aesthetic and layout.
Working Drawing: Detailed drawings that include all necessary construction notes and specifications.

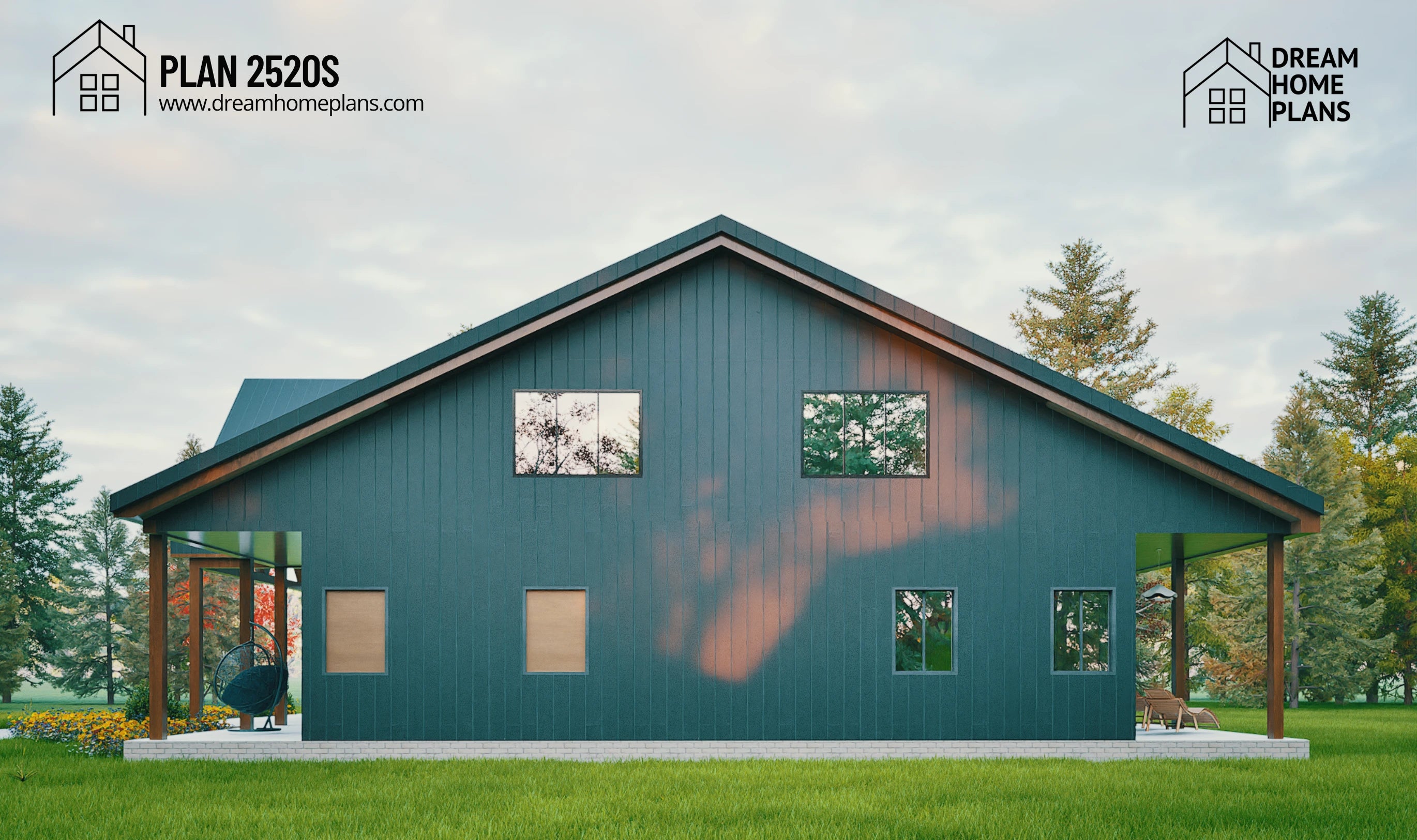

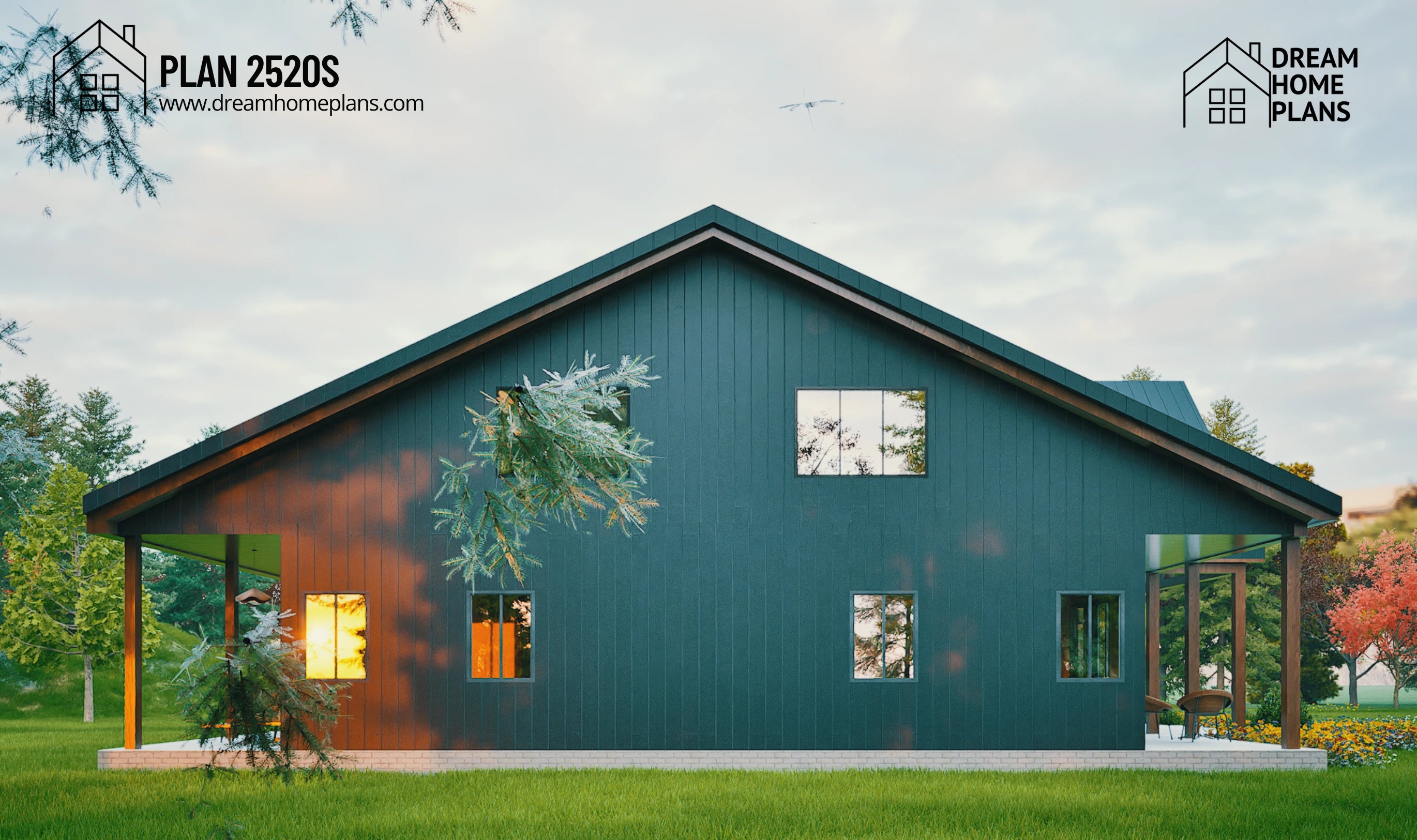

West & East Elevation: Side views of the house, showing the heights and finishes from the west and east perspectives.
South & North Elevation: Front and rear views of the house, outlining the heights and finishes from the south and north perspectives.
Section A-A': A cross-sectional view that details the interior structure along the A-Aā line.
Section B-B': A cross-sectional view that details the interior structure along the B-Bā line.
Section C-C': A cross-sectional view that details the interior structure along the C-Cā line.
Structural Layout: The foundational framework, including floor layouts and roof structures.
Wall Framing Details: Specifics on how each wall is constructed, including dimensions and materials.
Post Details: Information on the structural posts that support the building.
Header Details: Detailed drawings of the header construction above windows and doors.
Steel Truss Details: Layout and specifications for any steel trusses used in the structure.
Joining Details: Information on how various elements of the building are connected.
Electrical Drawing: A layout of the electrical plan, including the placement of outlets, switches, and fixtures.
Plumbing Drawing: Detailed plumbing layout, showing the placement of pipes, fixtures, and connections.
Material List: A comprehensive list of materials required for the construction of your home.
Slab Details: Information regarding the foundation slab, including dimensions and materials used.
